OVERVIEW

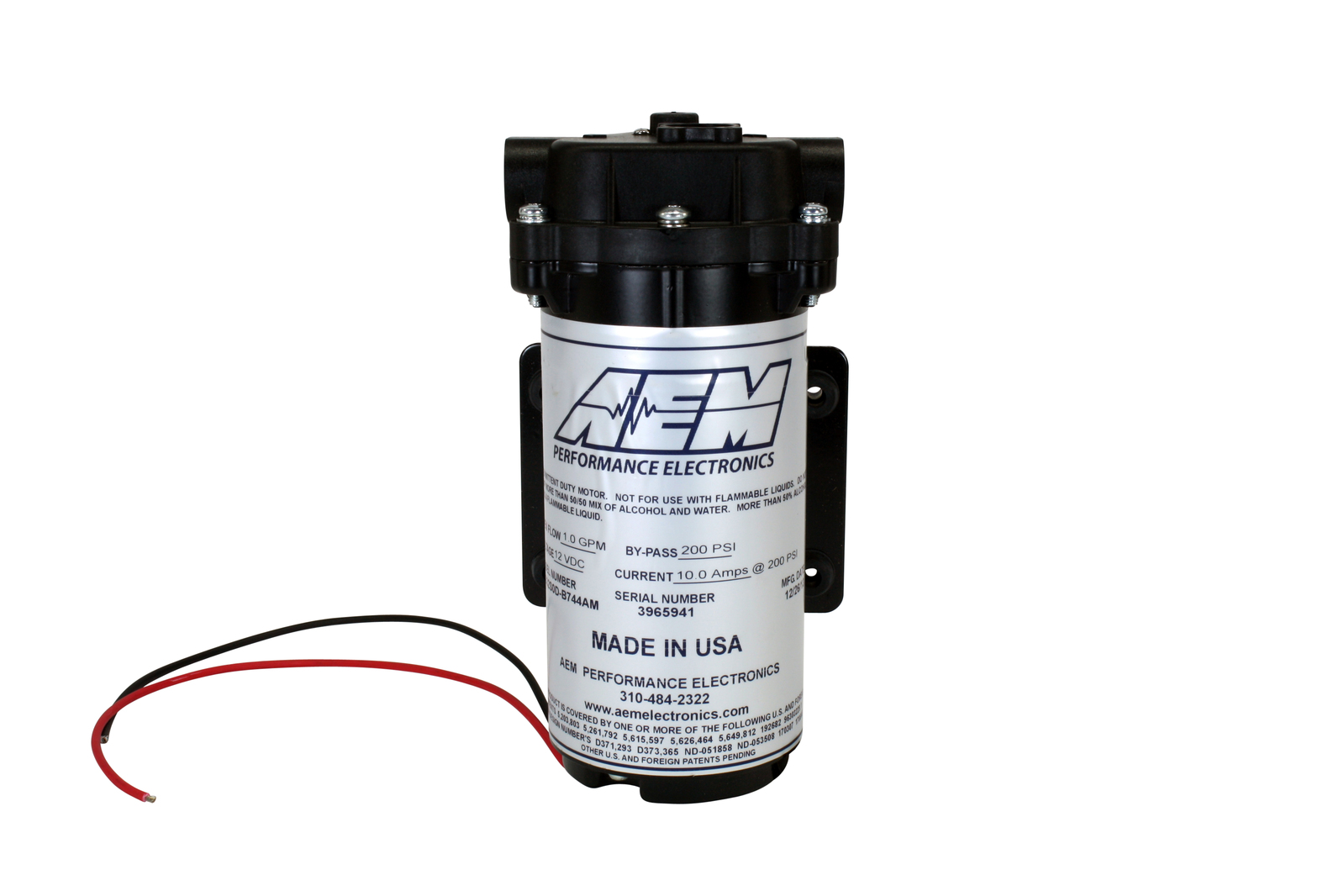

Find a suitable location to mount the pump. The tank and pump must be mounted in the same area. Pump may be mounted on exterior of vehicle but should be mounted away from wheel wells or other areas where it will come into direct contact with water or road debris. Pump failures that have clearly been caused by exposure to water/mud/debris will not be covered under warranty. This includes, but is not limited to, the bed of a truck and the inside of the fender wells. Find a location where the pump will remain dry.

The pump must be located in the same area as the tank and should be mounted at or below the lowest fluid level height. Take note of the direction of flow, indicated by the arrows on the pump body, when mounting the pump.

Use four #8 sheet metal screws along with the 4 small washers or #8-32 bolts and nylock nuts to mount the pump. The pump can be mounted in any position horizontally or vertically. The pump inlet and outlet are 3/8" NPT. Use pipe thread sealant. DO NOT OVER TIGHTEN OR DAMAGE TO THE PUMP BODY MAY OCCUR.

AEM WILL NOT WARRANT PUMPS DAMAGED BY OVER-TIGHTENED FITTINGS.
