2013-2024 Ram 1500 Trucks and 2019-2024 Ram 2500/3500 Trucks with ZF 845RE, 850RE, 8HP70, and 8HP75 Transmissions

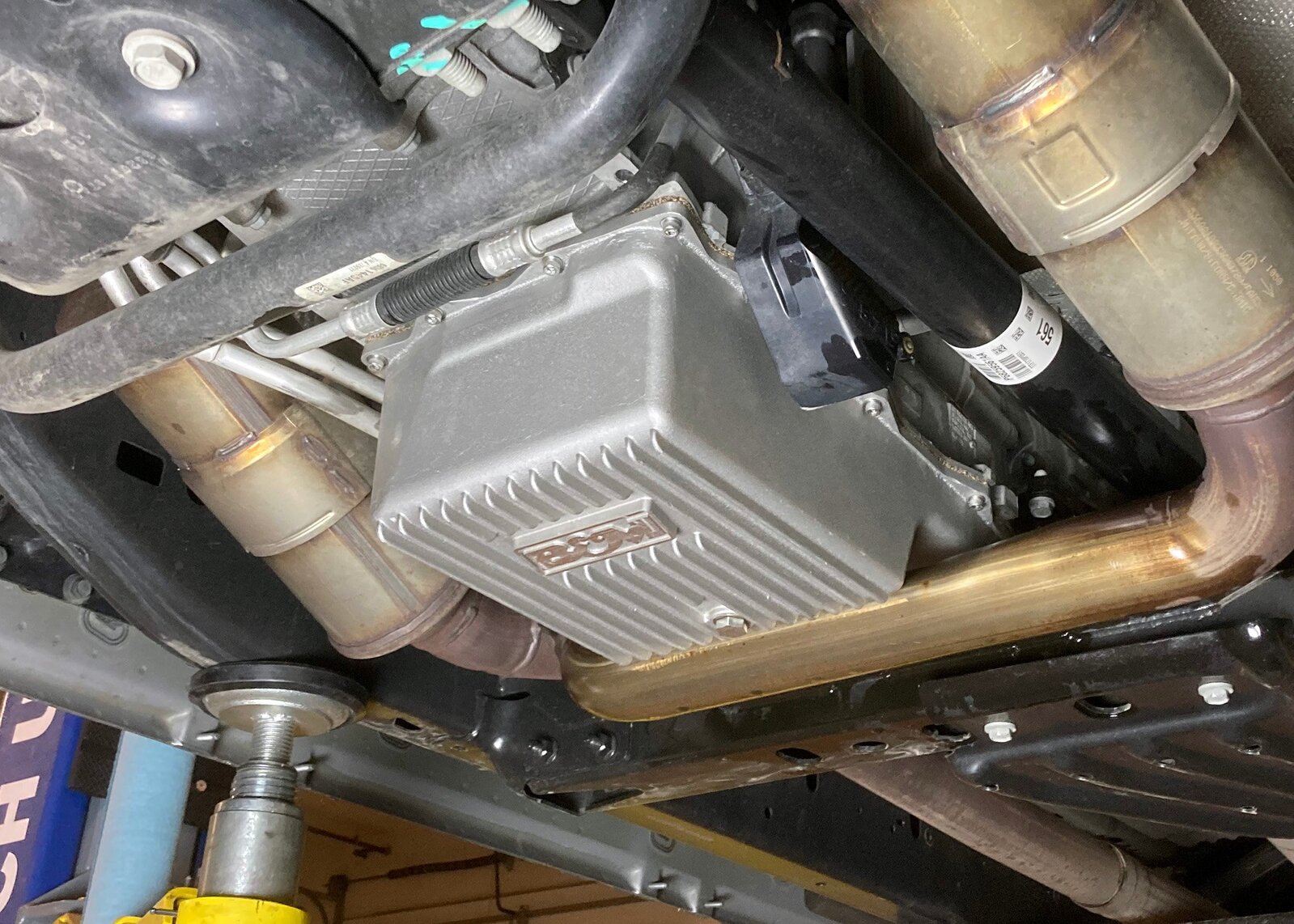

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 4 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures and prolonging the life of your transmission, transmission fluid, and corresponding components. Other features of this popular pan include a filter extension, pan gasket, and drain port with a magnetic drain plug for clean and easy servicing. Also includes a 1/8 inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing, or racing. Includes detailed instructions with all necessary hardware for an easy at-home installation.

Features:

  • Adds Additional 4-quart Fluid Capacity
  • Durable A356-T6 Aluminum Construction
  • Drain Port with Magnetic Drain Plug for Easy Servicing
  • Includes Fluid Pickup Extension & Gasket
  • Includes Sensor Temperature Port
  • Increased Cooling Properties
  • Lifetime Limited Warranty
  • Custom B&M Logo
  • Available in Natural or Black Finish

Specs:

Additional Fluid Capacity (qts) 4
Brand B&M
Color Natural
Drain Plug Included Yes
Drain Plug Kit Yes
Emission Code 5
Filter Extension Included Yes
Filter Included Yes
Gasket Included Yes
Instructions Included Yes
Material Cast Aluminum
Mounting Hardware Yes
Product Type Automatic Transmission Pans
Sale Category Transmission and Drivetrain
Style Deep
Temperature Sensor Bung Yes
Transmission ZF
Transmission Type Automatic
UPC 090127129449
California Proposition 65 Chemical Name Chromium (hexavalent compounds)
California Proposition 65 Required Yes
Part Number 70395
SKU 70395
Barcode # 90127129449
Brand B&M
Shipping Weight 6.0500kg
Shipping Width 0.180m
Shipping Height 0.320m
Shipping Length 0.500m
