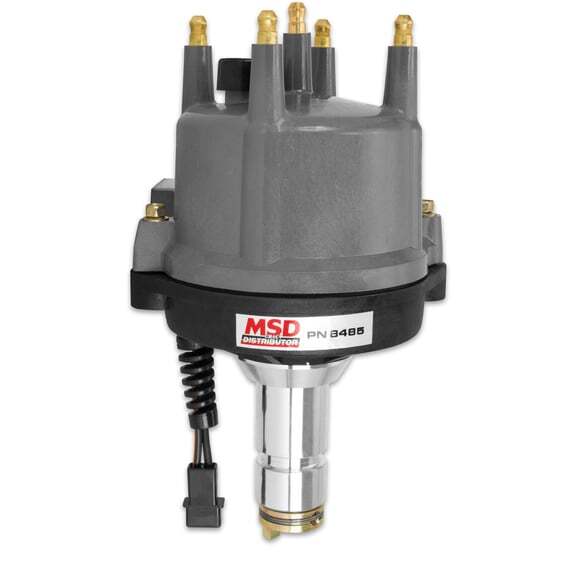

Using technology gained from building distributors for off-road and NASCAR racers, MSD offers this Billet Distributor for the popular Type 1 engine. A maintenance-free magnetic pickup is responsible for triggering the MSD Ignition. This pickup is accurate to within 1° at any rpm so you won't have to worry about points float or "burbles" at top end speeds. The pickup is triggered by a precision reluctor that is attached to a hardened steel shaft. For increased stability, a sealed ball bearing is used to guide the shaft. Since every engine application is different, the MSD Billet distributor features an easy-to-adjust mechanical advance assembly. By simply changing the advance springs and stop bushing you can tune in 24 different advance curves.

Features:

  • Designed as a performance upgrade for VW Type I air cooled engines
  • Supplied with bolt down distributor cap and rotor
  • Must be used with an MSD Ignition Control
  • Advance weight pins are staked and tig welded to the plate•  Nylon pads ensure smooth operation of the advance weights
  •  Mechanical advance assembly can be locked out for crank trigger systems
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing
  • CNC machined billet aluminum housing and Dupont Rynite base
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • No CARB Exemption Order Number
SKU 8485
Barcode # 85132084852
Brand MSD
Shipping Weight 4.9000kg
