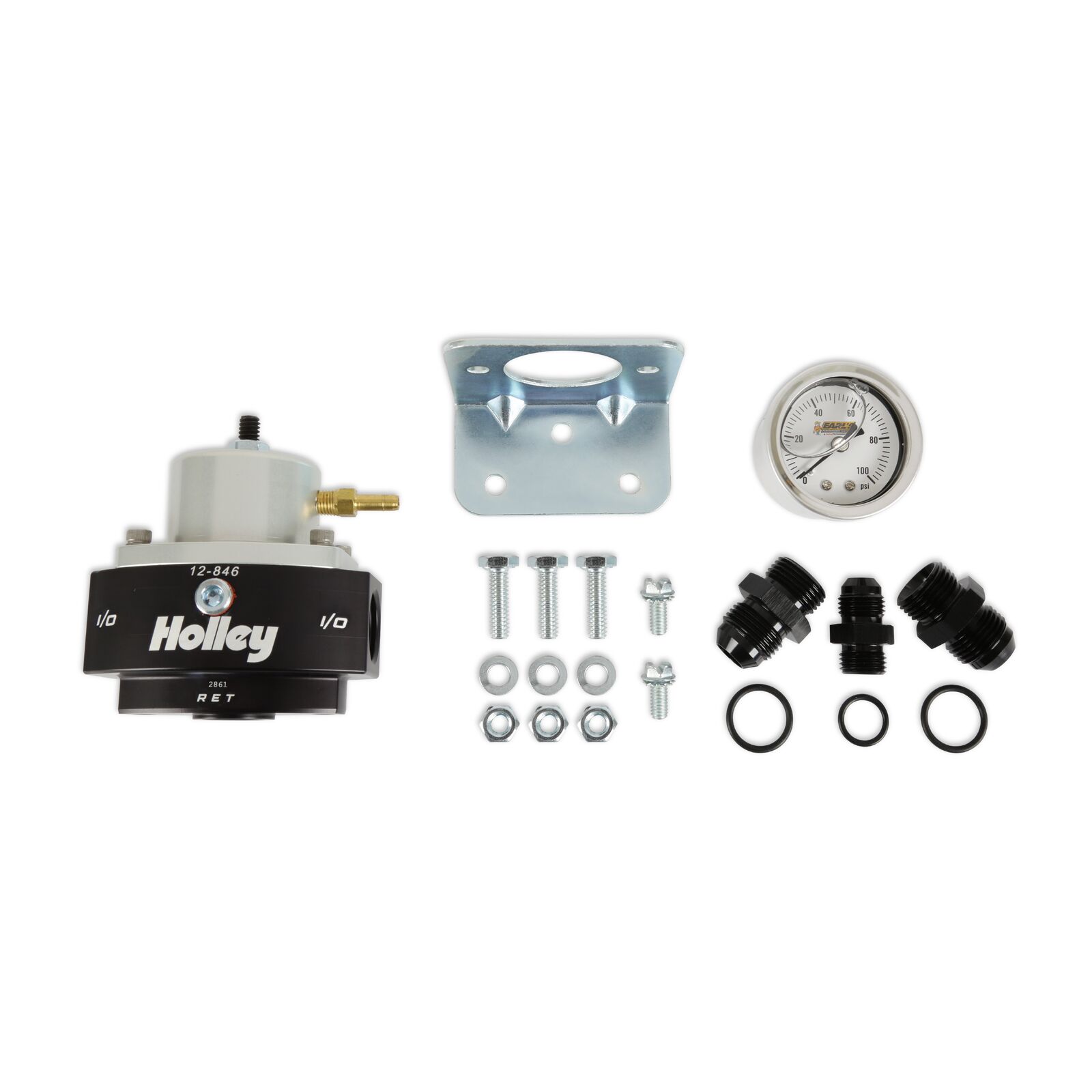

Holley EFI Billet Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-846 regulator features a billet aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 8 AN in/out ports, a 6 AN return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.

Features:

  • Die Cast Aluminum Construction
  • Adjustable from 15-60 psi for precise fuel pressure adjustments
  • Used in return style systems with a line back to the fuel tank
  • 8 AN O-ring Inlet, Outlet, and 6 AN O-ring Return Port
  • 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)
  • 1/8" NPT Boost Reference (1:1) and Barbed Fitting
  • Mounting Bracket Included

Specs

Adjustable Yes
Brand Holley EFI
Category Air and Fuel Delivery
Color Black
Emission Code 5
Fuel Pressure Range 15-60 PS
Fuel System EFI
Fuel System Type EFI
Fuel Type Gasoline
Gauge Port Yes
Grade Type Performance
Inlet Port Diameter -8AN
Inlet Quantity One
Inlet Size 8 AN O-Ring
Inlet Type ORB
Material Aluminium
Mounting Hardware Included Yes
Mounting Type Bolt On
Outlet Port Diameter -8AN
Outlet Quantity Two
Outlet Size 8 AN O-Ring
Outlet Type ORB
Part Type Fuel Injection Pressure Regulator
Port Quantity 5
Pressure Range 15-60 PSI
Product Type Fuel Pressure Regulator
Return Size 6 AN O-Ring
Style Bypass
Sub Category Fuel Injection System and Related Components
Warranty Manufacturer's Limited 90 Day Warranty
UPC 090127122907
Part Number 12-846KIT
SKU 12-846KIT
Barcode # 90127122907
Brand Holley EFI
Shipping Weight 0.8400kg
Shipping Width 0.130m
Shipping Height 0.140m
Shipping Length 0.170m
