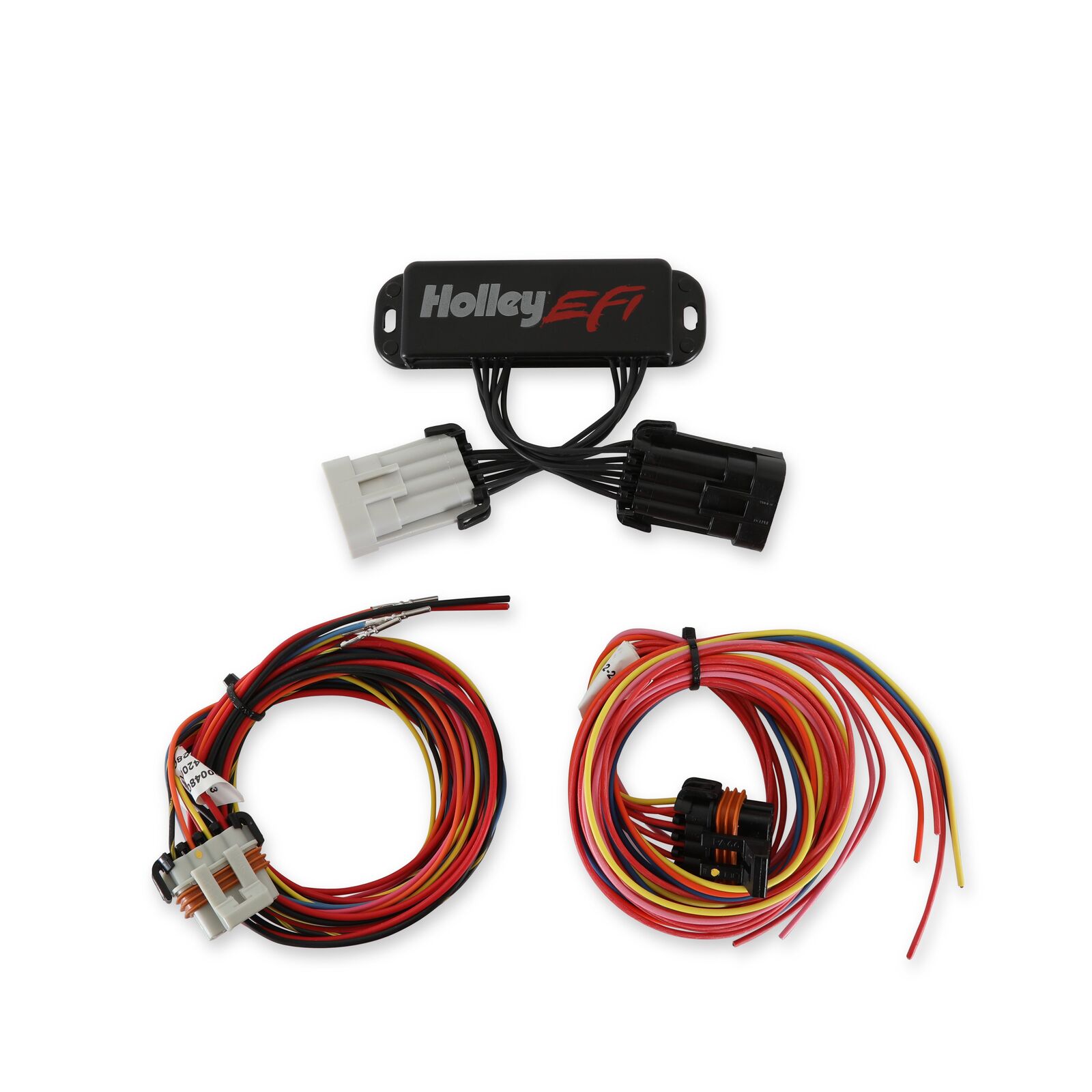

The four channel coil driver module is used to drive a two wire "dumb" ignition coil. Such coils are typically used on Ford Modular and late model Chrysler HEMI engines. Holley EFI ECUs require this coil driver module when running two wire "dumb" coils. Each module can drive four coils, so two are required for an eight cylinder engine that uses eight coils. Included is the coil driver module, an input harness with pins that can be connected directly into the HP or Dominator ECU, and an output harness with pigtail ends. The user must connect these to their specific coils.

Features:

  • Includes mating pigtails
  • Potted design allows installation in engine compartment
  • Drives two wire “Dumb Coils”
  • Four channel

Specs

Brand Holley EFI
Category Ignition
Connector Gender Female
Connector Quantity 2
Emission Code 5
Grade Type Performance
Ignition Type Distributorless
Mount Type Bolt-On
Mounting Hardware Included No
Part Type Ignition Control Module
Product Type High Current Driver - Module
Sub Category Control Modules
UPC 090127685105
Part Number 554-112
SKU 554-112
Barcode # 90127685105
Brand Holley EFI
Shipping Weight 0.3900kg
Shipping Width 0.080m
Shipping Height 0.110m
Shipping Length 0.170m
