2011-2021 Ford Coyote Engines including the 2018-2021 Direct Injected Engines

Overview
The new Hi-Flow billet fuel rails are a direct fit for all late model, 2011 and newer naturally aspirated Coyote engines (5.0 and 5.2) including Cobra Jet and Boss 302. This also includes the 2018 and newer direct injection engines. The fuel rails feature a 5/8" diameter fuel passage that provides the flow capacity for high horsepower applications.

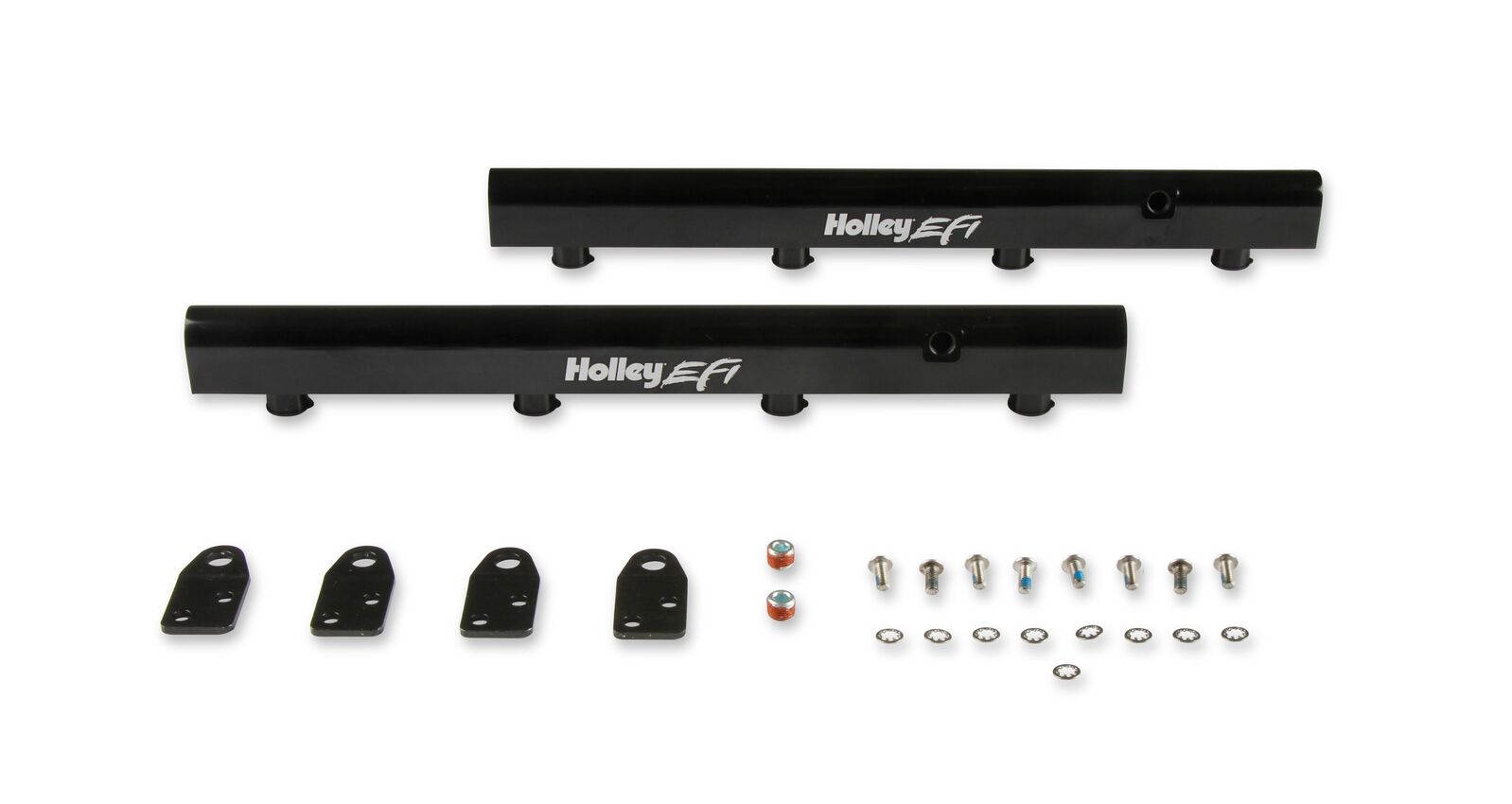

The black anodized rails have -8 ORB ports on each end and an 1/8" NPT port for a fuel gauge installation if you choose to do so. The rails are designed with the factory injector clip reliefs so that your factory injectors and retaining clips can be reused. The kit includes fuel rails, mounting brackets and required mounting hardware.
Features:

  • All late model, 2011+ naturally aspirated Coyote engines (5.0 and 5.2) including Cobra Jet and Boss 302. Also Including 2018+ DI Cars
  • Machined Billet extrusions with laser etched “Holley EFI” Logo
  • Injector Clip feature retained so factory injector clips can be re-used. This is important as the clips locate the injector radially for proper injector spray pattern onto valves.
  • -8 ORB ports front and back
  • 1/8 NPT gauge ports machined directly into rail
  • Mounting brackets and hardware included

Specs:

Brand Holley EFI
Category Intake Manifolds
Color Black
Emission Code 5
Engine Ford 5.0L Coyote
Fittings Included No
Fuel Injection Type Port
Fuel Injectors Included No
Fuel System Type EFI
Gasket Or Seal Included No
Grade Type Performance
Material Aluminium
Product Type Fuel Rail
UPC 090127108529
Part Number 534-283
SKU 534-283
Barcode # 90127108529
Brand Holley EFI
Shipping Weight 1.0500kg
Shipping Width 0.050m
Shipping Height 0.130m
Shipping Length 0.440m
