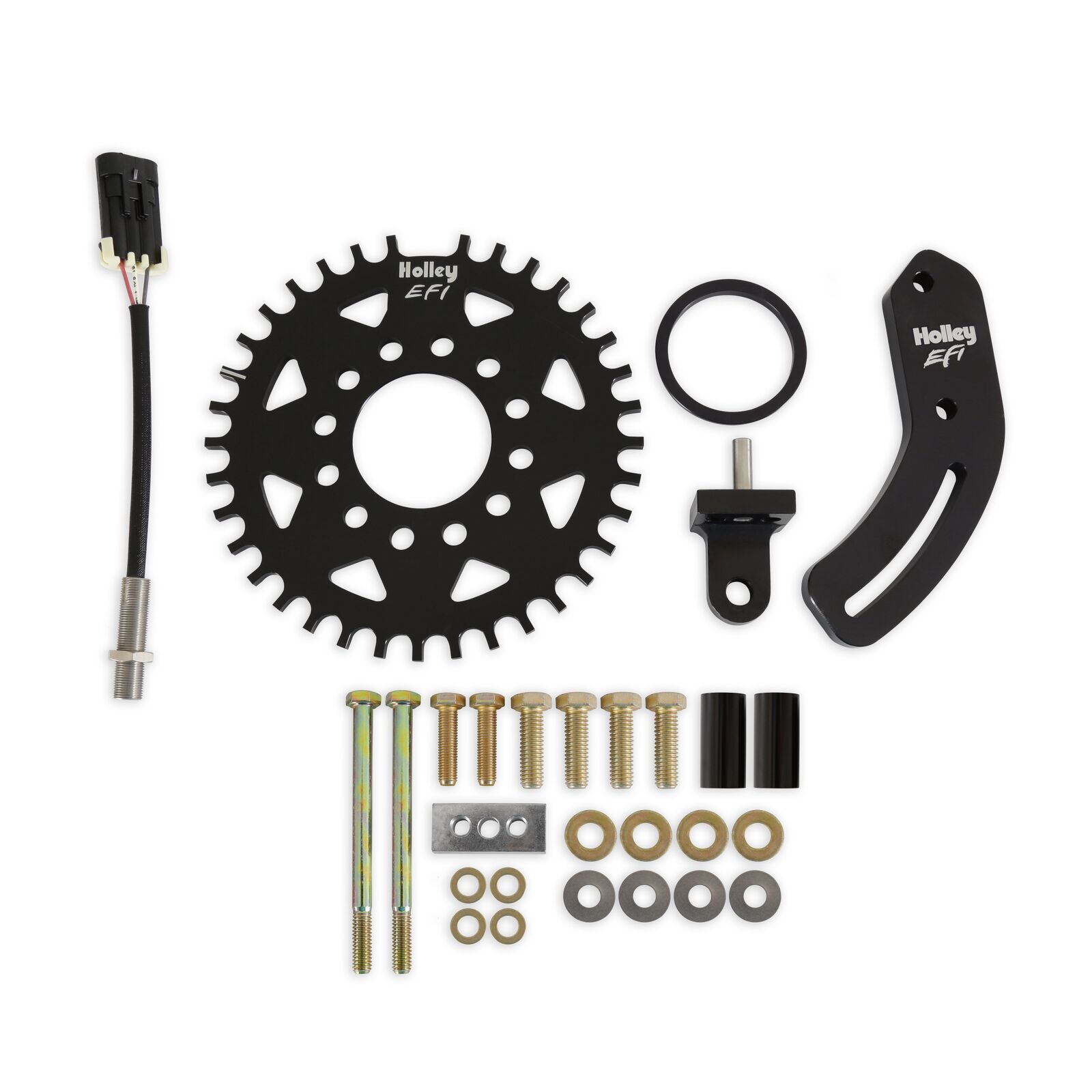

36-1 Tooth Crank Trigger System for Small Block Ford

Overview

Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD "style" Crank trigger. It is designed for use on SBF applications using a standard ATI or Fluidamper "style" balancer up to 7-1/4" in diameter.
Features:

  • 7.25” diameter, 1/4” thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance & striking good looks.
  • Crank wheel centers off of the balancer’s hub, eliminating the need for a centering ring
  • All billet, 6061-T6 aluminum sensor mounting brackets with “bright-dipped” black anodized finish & Laser etched Holley EFI logo
  • Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment
  • All Grade 8 & Mil. Spec mounting hardware

Specs:

Bracket Color Black
Bracket Material Aluminum
Brand Holley EFI
Category Ignition
Color Black
Diameter 7.25 in., 7.25"
Emission Code 4
Finish Black Zinc Oxide
Grade Type Performance
Make Ford
Part Type Ignition Crank Trigger Kit
Pickup Included Yes
Product Type Crank Trigger Kit
Sensor Dimensions 12mm x 50mm
Sensor Type Hall Effect
Sub Category Sensors
Trigger Type 36-1
Trigger Wheel Color Black
Trigger Wheel Material Steel
Trigger Wheel Outside Diameter 7.25 IN
Trigger Wheel Thickness 1/4 IN
Wheel Width 1/4"
UPC 090127731147
Part Number 556-115
SKU 556-115
Barcode # 90127731147
Brand Holley EFI
Shipping Weight 1.6400kg
Shipping Width 0.060m
Shipping Height 0.270m
Shipping Length 0.270m
