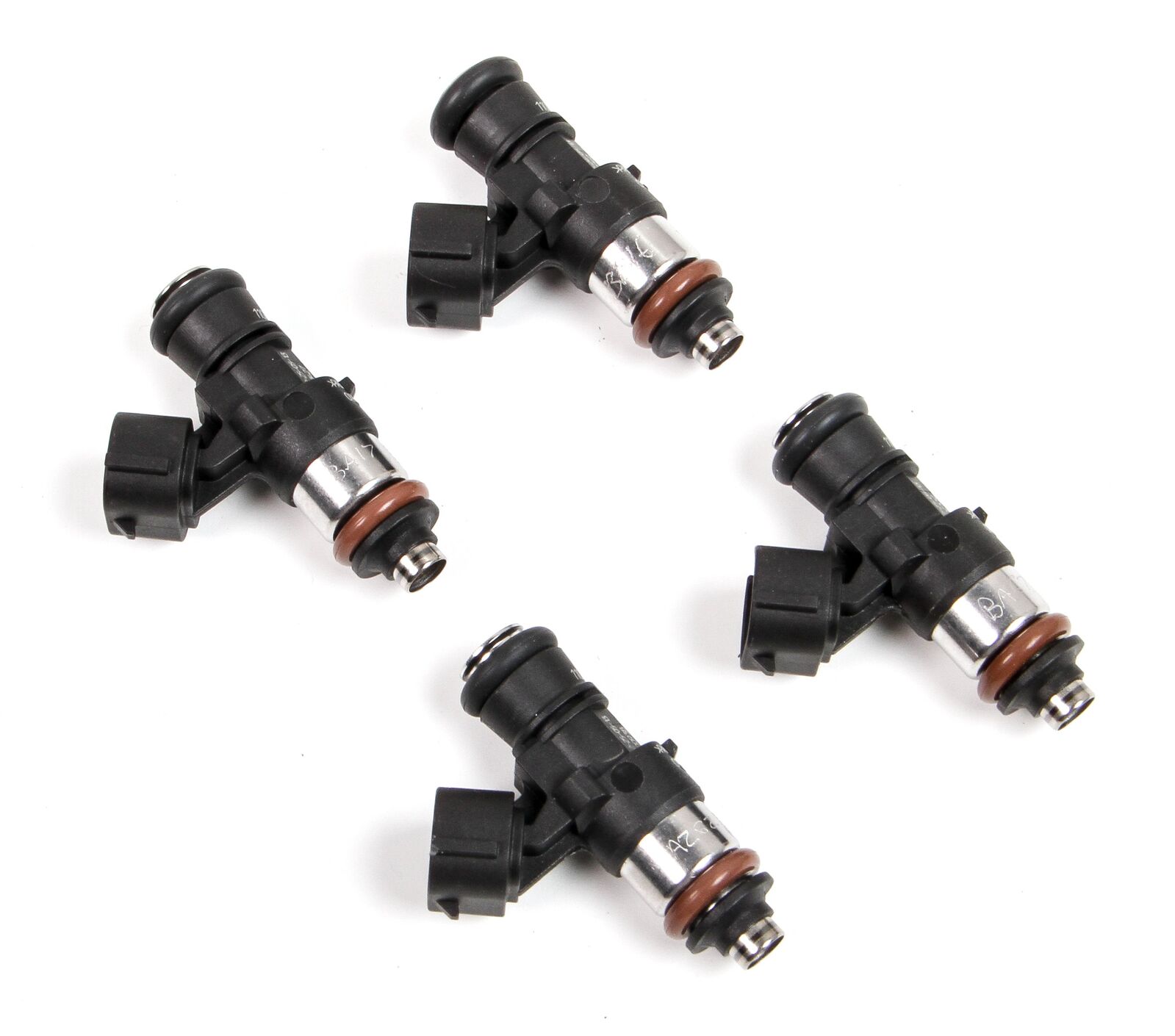

Bosch/EV14 - 205 lb/hr - High Impedance

Overview
Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 205 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.
Features:

  • Bosch/EV14 performance injectors - set of 4
  • High impedance for use with saturated drivers
  • Rated injector flow: 205 lb/hr @ 43 PSI
  • Supports up to 2600 Horsepower (8 Injectors)
  • Maximum recommended fuel pressure: 75 PSI
  • Requires Terminator Throttle Body Harness Part # 558-439

Specs:

Body Diameter 0.97
Body Length 2.85"
Body Style EV14
Brand Holley EFI
Category Air and Fuel Delivery
CFM N/A
Color Black
Connector Series EV6
Connector Shape EV6
Emission Code 3
Flow Rate 205 4U
Fuel Injection Type Port
Fuel Type E-85, Gasoline
  Gasoline
Gasket Or Seal Included Yes
Grade Type Performance
Impedance High
Length 40mm
Mounting Hardware Included No
O-Ring Quantity 2 per injector
O-Ring to O-Ring 2.415"
Part Type Fuel Injector
Product Type Fuel Injector
Rated Injector Flow 205 lb/hr
Retainer Clips Included No
Sub Category Fuel Injection System and Related Components
Terminal Gender Female
UPC 090127743706
Part Number 522-205
SKU 522-205
Barcode # 90127743706
Brand Holley EFI
Shipping Weight 0.0900kg
Shipping Width 0.060m
Shipping Height 0.090m
Shipping Length 0.090m
