Holley EFI Fuel SYSTEM Kit, VAPOR GAURD, W RETURN L
SKU code: 526-7

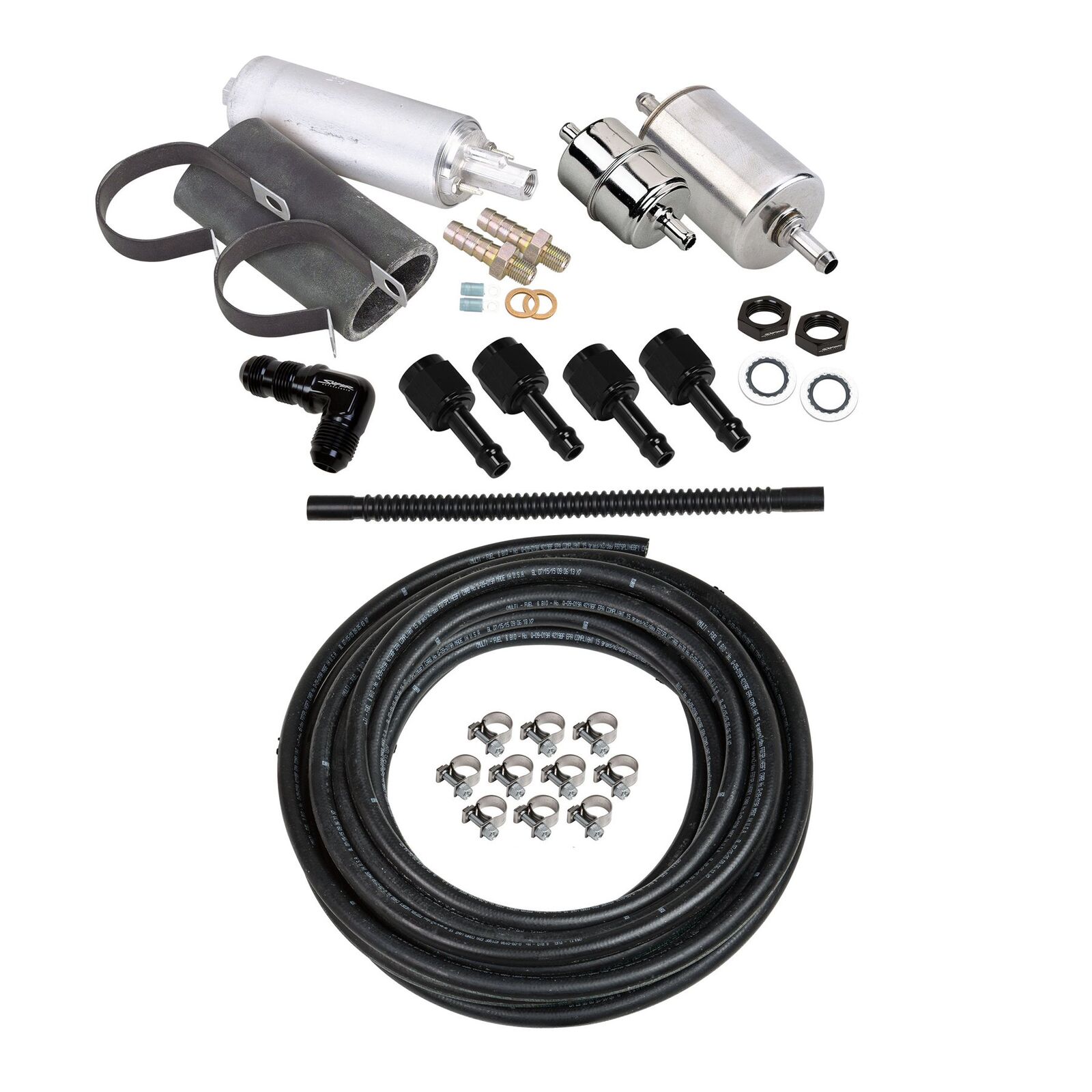

Includes complete fuel system consisting of; 40ft of 3/8" Vapor Guard™ Fuel Hose, 12-920 Fuel Pump, Filters, necessary hardware and bulkhead fitting to return fuel into the tank!
Overview
Holley EFI fuel kits are the perfect addition to your Sniper EFI or Holley EFI kit. They are engineered using Holley fuel pumps, regulators and filters coupled with quality Earl's plumbing to provide a fuel system tailored to the needs of your EFI System.
The secret to Earl's Vapor Guard hose is in its layers. The innermost Primary Barrier Layer offers high resistance to heat and aggressive fuels. The middle Earl's Vapor Guard™ Barrier is a Thermoplastic layer that provides superior fuel isolation and virtually eliminates vapors from escaping through the hose. The Exterior Cover Barrier provides extreme tolerance to heat and ozone giving Earl's Vapor Guard a three way shield against hose deterioration.
Features:
- 40ft of 3/8” Vapor Guard Fuel Hose
- 12-920 Fuel Pump
- Pre and Post Fuel Filters
- Necessary hardware and bulkhead fitting to return fuel into the tank
- •Multi-layer rubber hose designed to withstand to the corrosive properties of modern fuels
- •Multi-fuel compatible: Approved for use with leaded and unleaded Gasoline, Diesel, Biodiesel, E-85, 100% Methanol, ETHANOL and Gasohol fuels
Specs:
| Application | Ford |
|---|---|
| Brand | Holley EFI |
| Category | Air and Fuel Delivery |
| Emission Code | 4 |
| Finish | Black |
| Forced Induction HP@43PSI | 600 |
| Forced Induction HP@60PSI | 530 |
| Fuel Delivery Type | Fuel Injection |
| Fuel Sending Unit Included | No |
| Fuel Type | Pump Gas/Race Gas |
| Gasket Or Seal Included | No |
| GPH@43PSI | 67 |
| GPH@60PSI | 62 |
| Grade Type | Performance |
| Hose Length | 40' |
| Hose Size | 3/8" |
| Internal Or External | External |
| LPH@43PSI | 254 |
| LPH@60PSI | 235 |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Naturally Aspirated HP@43PSI | 800 |
| Naturally Aspirated HP@60PSI | 690 |
| Negative Ground | Yes |
| Outlet Type | ORB |
| Part Type | Electric Fuel Pump |
| Product Type | EFI Fuel System Kit |
| Regulator Included | Yes |
| Seal And Lock Ring Included | No |
| Strainer Included | No |
| Sub Category | Fuel Pumps and Related Components |
| Transmission | N/A |
| Universal Or Specific Fit | Universal |
| Wiring Harness Included | No |
| UPC | 090127738016 |
| Part Number | 526-7 |
| SKU | 526-7 |
| Barcode # | 90127738016 |
| Brand | Holley EFI |
| Shipping Weight | 3.3600kg |
| Shipping Width | 0.240m |
| Shipping Height | 0.320m |
| Shipping Length | 0.370m |
