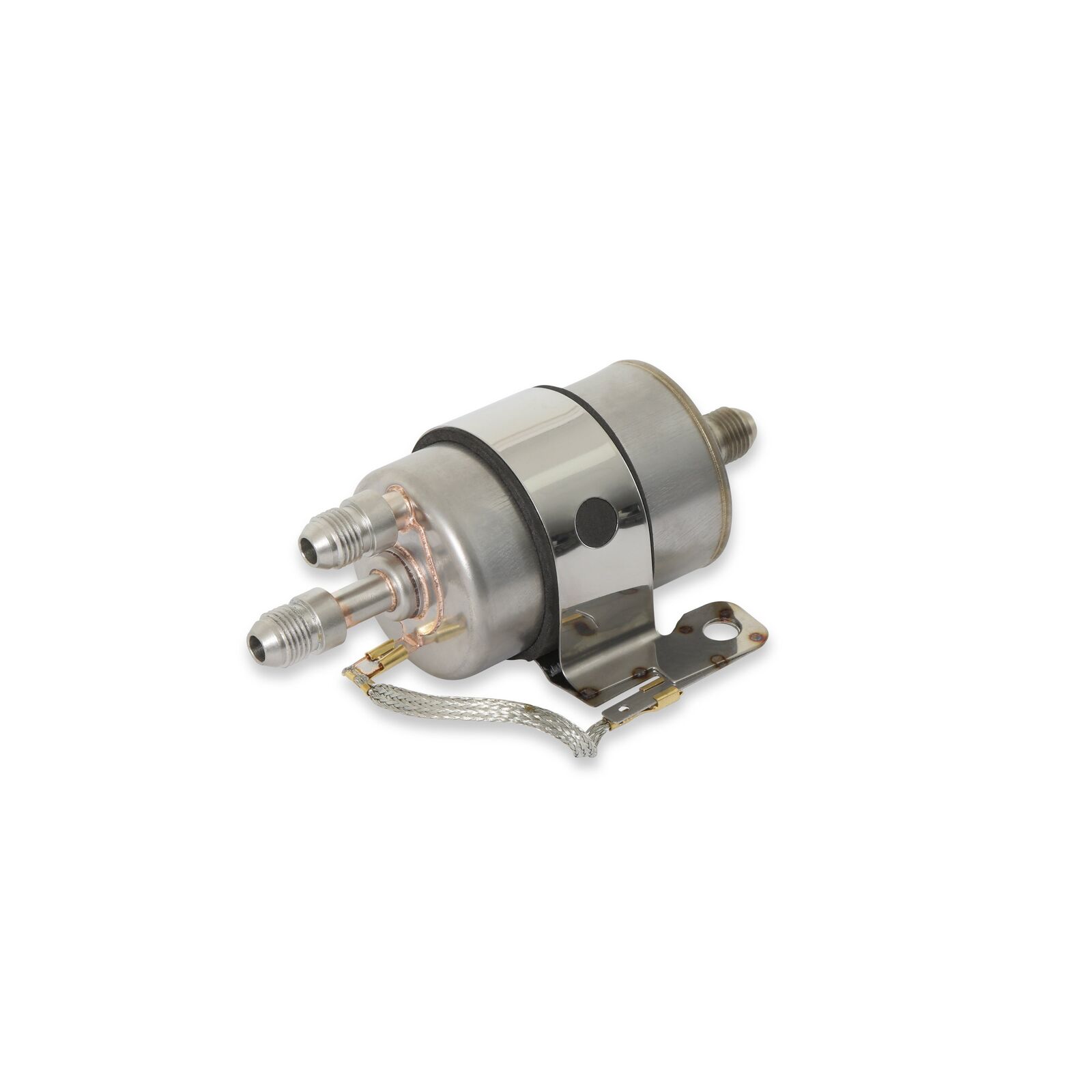

Filter / Regulator Assembly, return style preset at 58 PSI, -6 AN connections

Overview
Holley EFI fuel filters with built-in regulator provide a simple and clean means to fueling your LS swap. Available with OEM-style or -6AN connections, they feature an internal regulator set at 58 psi, along with an integrated 5 nominal micron rated filter. The bypass design allows you to run one inlet with one outlet to the engine, and a return outlet back to the tank. Holley EFI fuel filter regulators are ideal when performing a LS engine swap or any other fuel injection swap that is designed to run at 58 psi of static pressure
Features:

  • GM style Filter / Bypass Style Regulator
  • All stainless steel construction for improved corrosion resistance
  • Designed with one inlet, one outlet, and one return
  • Fixed pressure at 58 psi
  • Nominal Micron Rating: 5
  • Can be used with other EFI systems that require 58 psi
  • Not recommended with fuel pumps that flow over 450 LPH
  • Available with stock quick connectors or with -6AN male connections
  • Return line required for proper regulator operation

Specs:

Adjustable No
Brand Holley EFI
Category Air and Fuel Delivery
Emission Code 3
Fuel System EFI
Fuel System Type EFI
Fuel Type Gas
Gauge Port No
Grade Type Performance
Inlet Port Diameter -6AN
Inlet Quantity One
Inlet Size -6 AN
Inlet Type AN
Material Stainless Steel
Micron 5
Mounting Hardware Included No
Mounting Type Bolt On
Outlet Port Diameter -6AN
Outlet Quantity Two
Outlet Size -6 AN
Outlet Type AN
Part Type Fuel Injection Pressure Regulator
Port Quantity 3
Product Type Fuel Pressure Regulator
Style Return Style
Sub Category Fuel Injection System and Related Components
Warranty Manufacturer's Limited 90 Day Warranty
UPC 090127130643
Part Number 162-591
SKU 162-591
Barcode # 90127130643
Brand Holley EFI
Shipping Weight 0.3200kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.150m
