For Dominator, HP ECU's, and other EFI systems

Overview

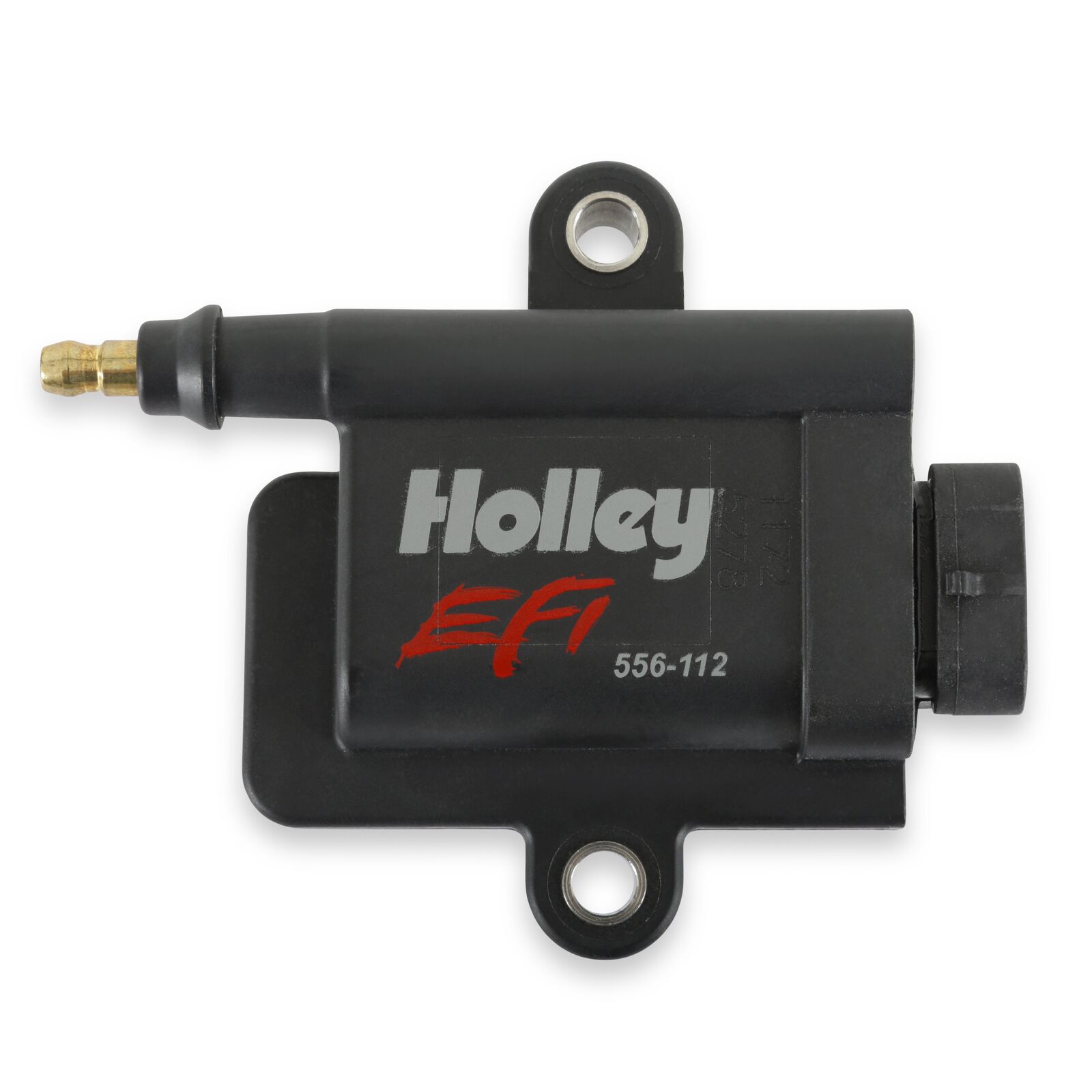

This coil is designed for use with Holley HP and Dominator ECU's, as well other EFI systems that can drive "smart" ignition coils. Although it is designed for high powered race applications, it can be used on street driven vehicles as well.
Features:

  • Peak Voltage - 44,000V
  • Peak Output - 102 Mj
  • Maximum Battery Voltage - 17V
  • Mating Connector - Delphi P/N 12162825 “Pull to Seat”
  • Connector Pin - Delphi P/N 12124075 “Pull to Seat”
  • Includes mating connector and pins

Specs:

Brand Holley EFI
Category Ignition
Coil Type Holley SmartCoil
Coil Wire Included No
Color Black
Connector Gender Female
Emission Code 4
Grade Type Performance
Height 1.86"
Ignition Wire Terminal Type HEI Style Tower
Mounting Bolt Pattern 74mm
Mounting Bracket Included No
Mounting Hardware Included No
Mounting Hole Quantity 2
Oil Filled No
Overall Length 4.3"
Part Type Direct Ignition Coil
Product Type Distrutorless Ignition - DIS - smart coil
Sub Category Ignition Coil
Terminal Gender Male
Width 3.6"
UPC 090127685150
Part Number 556-112
SKU 556-112
Barcode # 90127685150
Brand Holley EFI
Shipping Weight 0.4100kg
Shipping Width 0.080m
Shipping Height 0.110m
Shipping Length 0.130m
