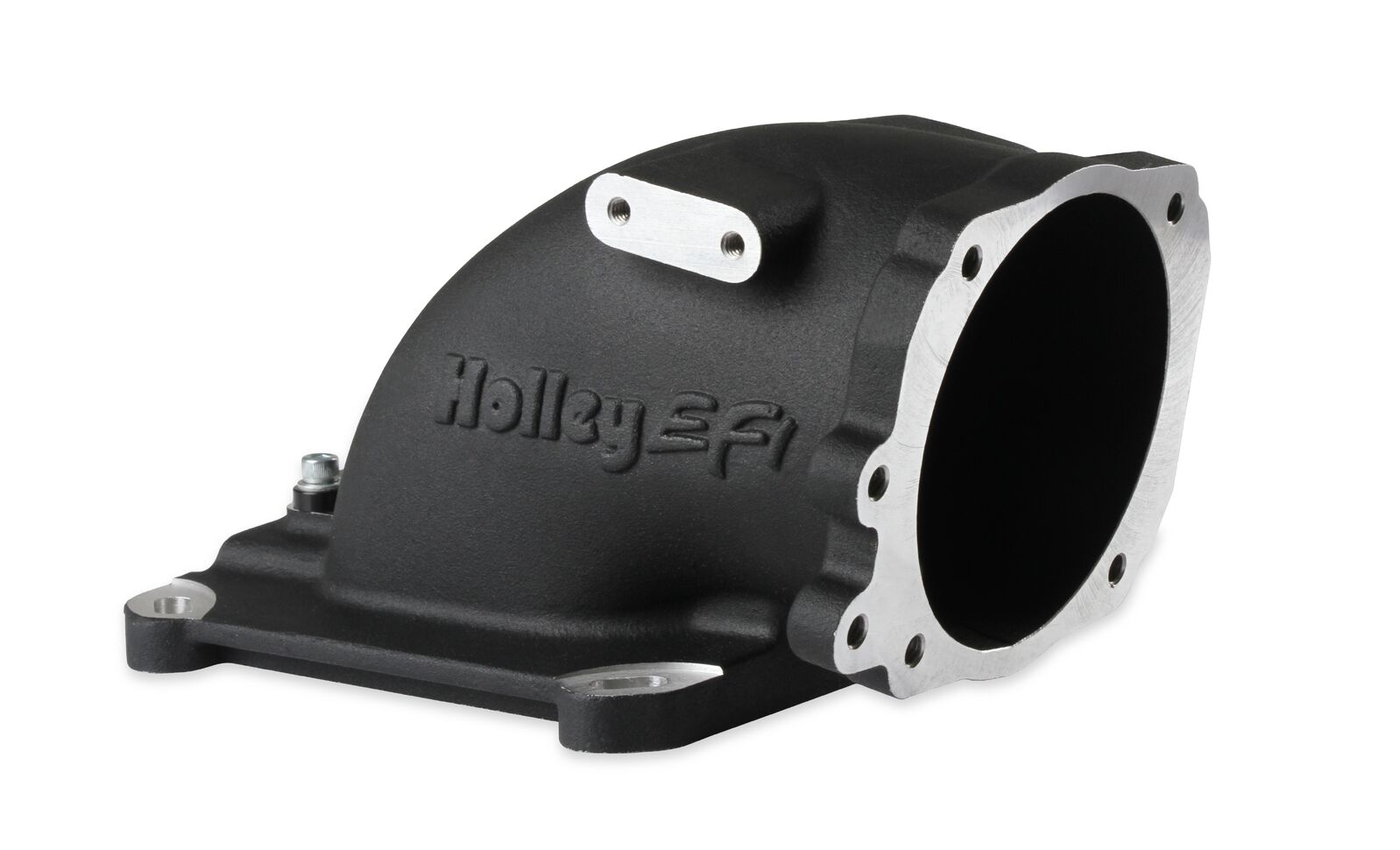

This cast EFI intake elbow allows the use of Ford throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes & dual throttle cable mounting bracket bosses allow the elbow & throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100° throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets & hardware.

Features:

  • Fits Ford 5.0 Throttle Bodies
  • 105mm Throttle Body Opening - 100° Mounting Angle
  • Fits Intakes w/ 4150 Flange
  • Slotted Mounting Holes Allow Forward, Sideways or Rearward Throttle Body Mounting
  • LS3 Style MAP Sensor Mounting
  • (4) Vacuum Ports – (1) Each 1/4” NPT & 3/8” NPT & (2) 1/8” NPT w/ Indirect Baffled Signal
  • (2) Throttle Linkage Mounting Bosses
  • Sand Cast w/ Black Finish
  • Overall Height 5.12”

Specs

Brand Holley EFI
Category Air and Fuel Delivery
Color Black
Construction Cast
Emission Code 3
Engine GM LS1/LS2/LS6
Finish Black
Flange Style EFI
Fuel System Type EFI
Gasket Or Seal Included Yes
Grade Type Performance
Height 5.12"
Part Type Fuel Injection Throttle Body Adapter
Product Type Intake Elbow
Sub Category Hardware, Fasteners and Fittings
Throttle Bore 105mm
Warranty Manufacturer's Limited 90 Day Warranty
UPC 090127064757
Part Number 300-240FBK
SKU 300-240FBK
Barcode # 90127064757
Brand Holley EFI
Shipping Weight 1.9000kg
Shipping Width 0.170m
Shipping Height 0.180m
Shipping Length 0.270m
