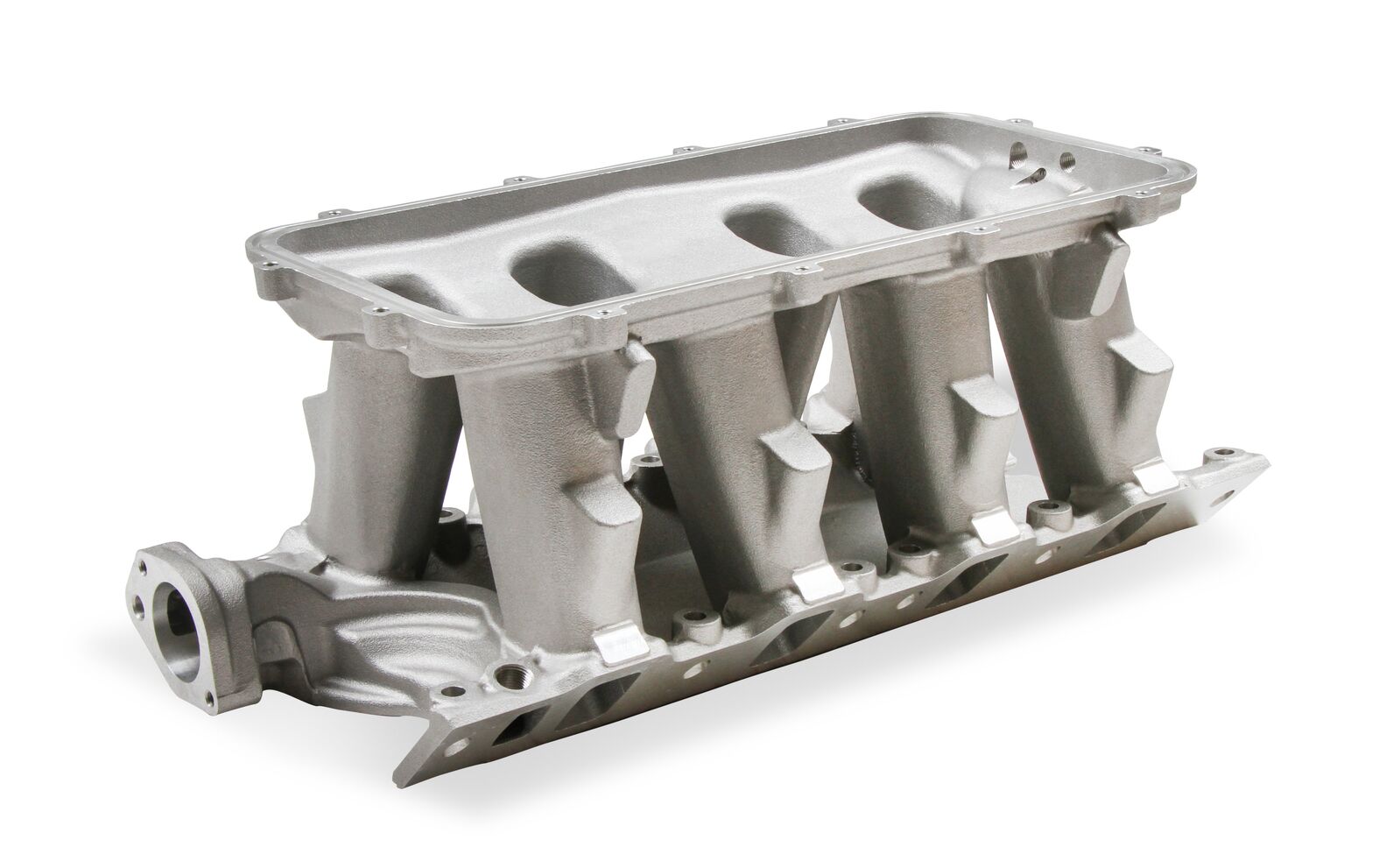

Holley EFI 8.2" SBF Ford Hi-Ram Carbureted Manifold Base
SKU code: 300-275
The carbureted Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 8.2" deck height. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • Cast aluminum construction. ***Carbureted Base Manifold only-Manifold tops available seperately. *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. *** For carbureted applications you can use MSD PN 85797 Ford 289-302 Distributor with Steel Gear
Features:
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Manifold is designed for a 8.2" SBF deck height
- Carbureted Base Manifold only
- Long intake runner design
Specs
| Basic Operating RPM Range | 1500-7000 RPM |
|---|---|
| Brand | Holley EFI |
| Category | Engine |
| Color | Natural |
| Construction | Cast |
| EGR Port | No |
| Emission Code | 3 |
| Engine | Ford Small Block |
| Finish | Satin |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | Yes |
| Fuel System Type | Carburetor |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Hi-Ram |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Part Type | Engine Intake Manifold |
| Plenum Finish | Natural |
| Port Size | 2.00" x 1.190" |
| Product Type | Intake Manifold |
| Removable Runners | No |
| RPM Power Band | 1500-7000 |
| Single Or Dual Plane Type | Single Plane |
| Sub Category | Cylinder Block Components |
| Throttle Body Included | No |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| UPC | 090127062661 |
| Part Number | 300-275 |
| SKU | 300-275 |
| Barcode # | 90127062661 |
| Brand | Holley EFI |
| Shipping Weight | 8.3200kg |
| Shipping Width | 0.240m |
| Shipping Height | 0.320m |
| Shipping Length | 0.570m |
