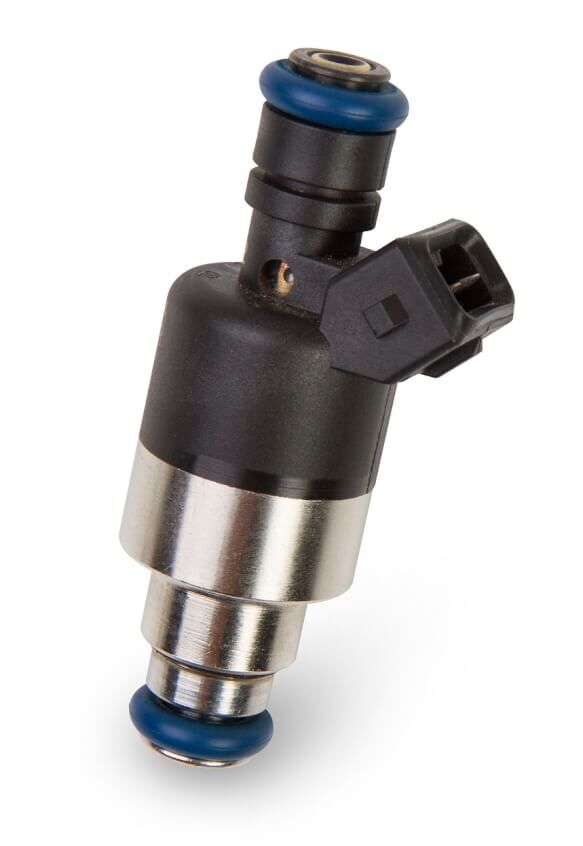

Bosch/EV1 Style, Low Impedance Fuel Injector

Overview
Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.
Features:
Bosch/EV1 style performance injector- Individual
Low impedance (2.0 Ohms) for use with peak and hold drivers
Rated injector flow: 160 lb/hr @ 43 PSI
Tri-cone spray pattern
Maximum recommended fuel pressure: 75 PSI

Specs:

Body Diameter 0.97
Body Length 2.85"
Body Style EV1
Brand Holley EFI
Category Air and Fuel Delivery
Color Black
Connector Series EV1 - Jetronic - (Bosch Style)
Connector Shape EV1 - Jetronic - (Bosch Style)
Emission Code 3
Flow Rate 160 4U
Fuel Injection Type Port
Fuel Type E-85, Gasoline
Gasket Or Seal Included Yes
Grade Type Performance
Impedance Low (2.0 Ohm)
Mounting Hardware Included No
O-Ring Quantity 2 per injector
O-Ring to O-Ring 2.415"
Part Type Fuel Injector
Product Type Fuel Injector
Rated Injector Flow 160 lb/hr
Retainer Clips Included No
Sub Category Fuel Injection System and Related Components
Terminal Gender Female
UPC 090127686577
Part Number 522-161
SKU 522-161
Barcode # 90127686577
Brand Holley EFI
Shipping Weight 0.1000kg
Shipping Width 0.050m
Shipping Height 0.130m
Shipping Length 0.180m
