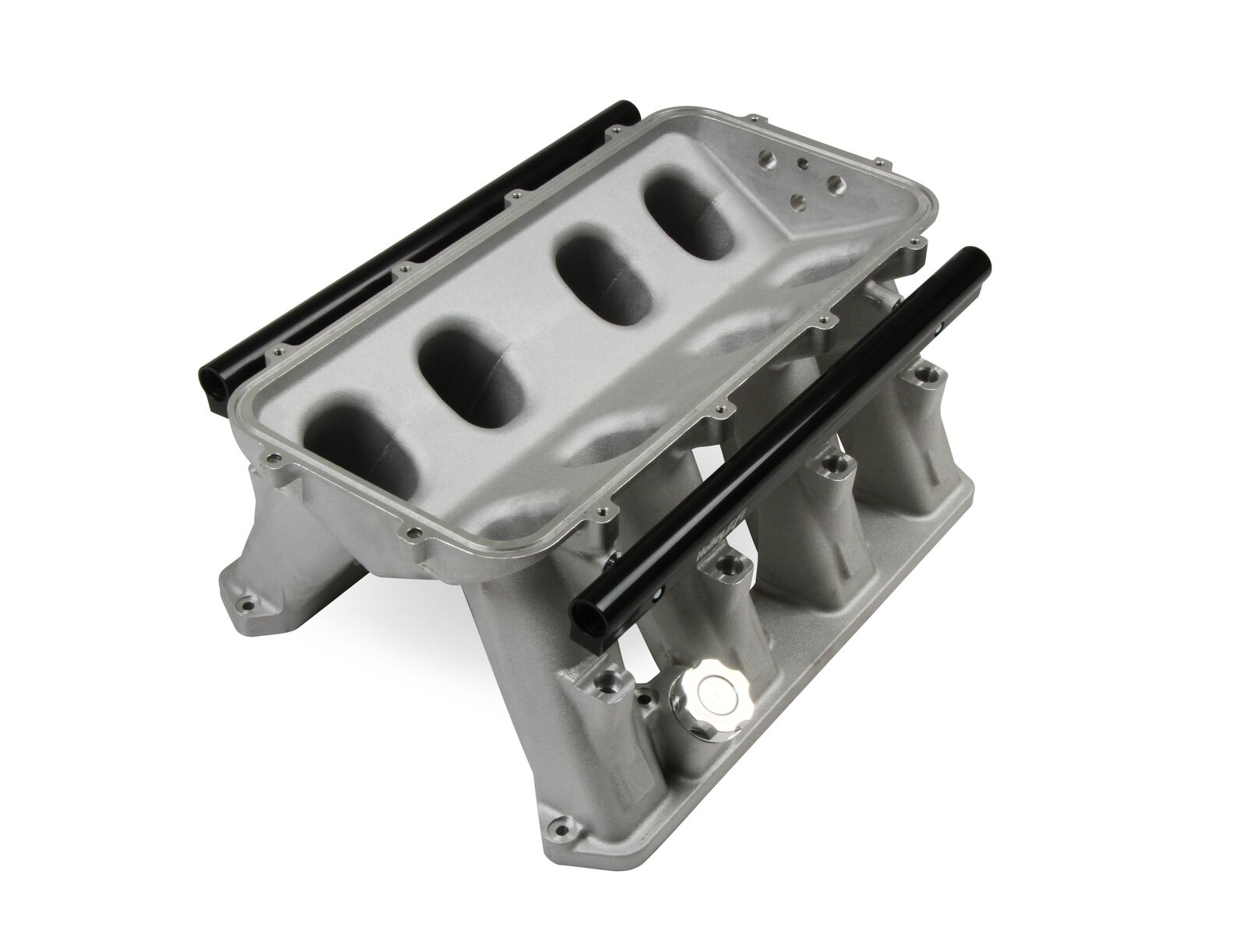

Holley EFI Gen III Hemi Hi-Ram EFI Manifold Base
SKU code: 300-653
Add even more power to your Gen III Hemi engine with a Holley Hi-Ram intake manifold. This cast intake manifold has large intake ports - fits 2009-up 5.7L, 2005-2010 6.1L & 2011-up 6.4L engines. The Holley Hi-Ram intake manifold is for high-performance applications where induction system height is not limited. Using this Hi-Ram intake with high flowing Gen III Hemi cylinder heads has outstanding potential for naturally aspirated & forced induction applications. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! The base is designed to be modular in configuration to accept a wide range of EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations. The EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flow and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Intended for use on naturally aspirated, forced induction, or nitrous engines in the 5.7 to 7.2+ liter range, max power at 7500-8500 RPM.
Features:
- Add Even More Power to the Gen III Hemi Engine with a Holley Hi-Ram Intake Manifold
- Fits Gen III Hemi Engines w/ Large Intake Ports (1.70” Height x 1.88” Wide) – fits 2009-up 5.7L, 2005-2010 6.1L, 2011-up 6.4L)
- Cast Aluminum Construction w/ Natural Satin or Black Finish
- Runner Length and the Tapered Cross Section Designed to Perform Well for a Wide Range of Engine Configurations
- Includes EFI Fuel Rails w/ -8 AN O-Ring Fittings & Large Passages to Accommodate High Fuel Flow and Dampen Pressure Pulsations in the Fuel System
- Works with Gen III Hemi Injectors & Bosch EV-1 Style Injectors
- O-Ring Seal to Head – Large Retained O-rings Offer Superior Original Equipment (OE) Style Sealing & Are Easy to Replace
- Billet Oil Fill Cap – Attractive Low Profile Design
- Positive Crankcase Ventilation (PVC) Ports w/ Adapter Fittings
- Overall Height: 11.59”
- Port for OE Style Manifold Absolute Pressure (MAP) Sensor (1 or 2 Bar)
- Cast-In Pads for Adding Nitrous Nozzles
- Manifold Base – Available Separately for Custom Induction Systems
Specs
| Basic Operating RPM Range | 1500-7000 RPM |
|---|---|
| Brand | Holley EFI |
| Category | Engine |
| Color | Natural |
| Construction | Cast |
| EGR Port | No |
| Emission Code | 3 |
| Engine | GEN 3 HEMI |
| Finish | Satin |
| Flange Style | EFI |
| Front Height | 7.69 inch |
| Front Maximum Height | 7.69 IN |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | Yes |
| Fuel System Type | EFI |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Injector Style Provision | EV-1, Gen III Hemi |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Hi-Ram |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Part Type | Engine Intake Manifold |
| Plenum Finish | Natural |
| Port Size | 1.70" x 1.88" |
| Product Type | Intake Manifold Base |
| Rear Height | 7.69 inch |
| Rear Maximum Height | 7.69 IN |
| Removable Runners | No |
| RPM Power Band | 1500-7000 |
| Runner Length | 6.65 inch |
| Single Or Dual Plane Type | Single Plane |
| Style | EFI |
| Sub Category | Cylinder Block Components |
| Throttle Body Included | No |
| Type of Component | Lower Manifold |
| Vacuum Ports | (2) 3/8" NPT & (1) 1/4" NPT |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| UPC | 090127101599 |
| Part Number | 300-653 |
| SKU | 300-653 |
| Barcode # | 90127101599 |
| Brand | Holley EFI |
| Shipping Weight | 8.4600kg |
| Shipping Width | 0.240m |
| Shipping Height | 0.380m |
| Shipping Length | 0.410m |
