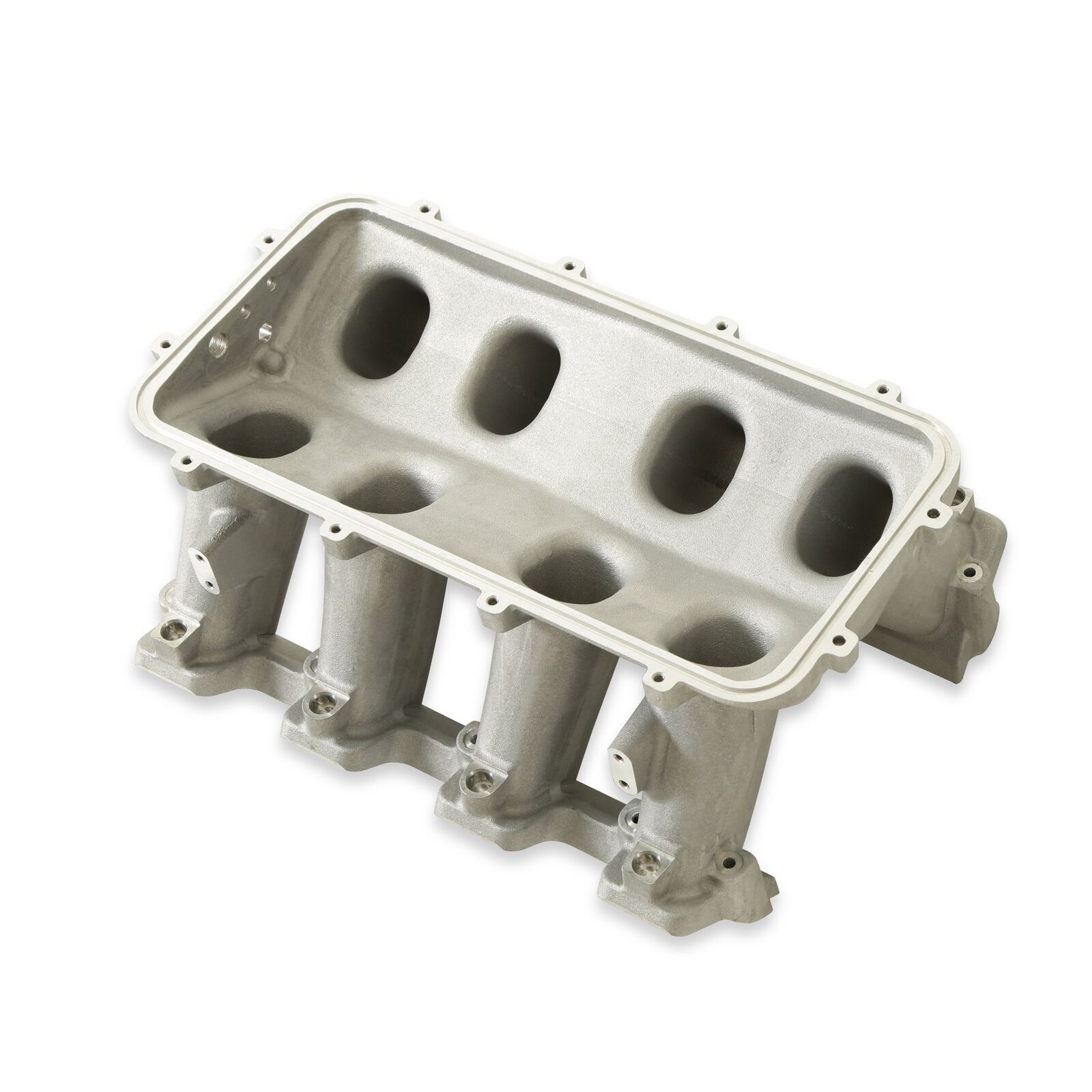

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

Features:

  • Port Size – 2.49” Height x 1.21” Wide
  • Mounting Flange Gasket Type – Round 3/32” O-Ring Viton, 3” I.D.
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25” to 2.77 in²

Specs

Basic Operating RPM Range 3500-8000 RPM
Brand Holley EFI
Category Engine
Color Natural
Construction Cast
EGR Port No
Emission Code 4
Engine GM LS3/L92
Finish Silver
Fuel Injectors Included No
Fuel Rail(s) Included Yes
Fuel System Type EFI
Gasket Or Seal Included Yes
Grade Type Performance
Intake Port Gasket(s) Included No
Material Aluminum
Nitrous Bung(s) Included No
Part Type Engine Intake Manifold
Plenum Finish Natural
Product Type Intake Manifold Base
Removable Runners No
RPM Power Band 3500-8000 RPM
Single Or Dual Plane Type Single Plane
Sub Category Cylinder Block Components
Throttle Body Included No
Type of Component Lower Manifold
Warranty Manufacturer's Limited 90 Day Warranty
UPC 090127670774
Part Number 300-214
SKU 300-214
Barcode # 90127670774
Brand Holley EFI
Shipping Weight 13.6500kg
Shipping Width 0.260m
Shipping Height 0.370m
Shipping Length 0.520m
