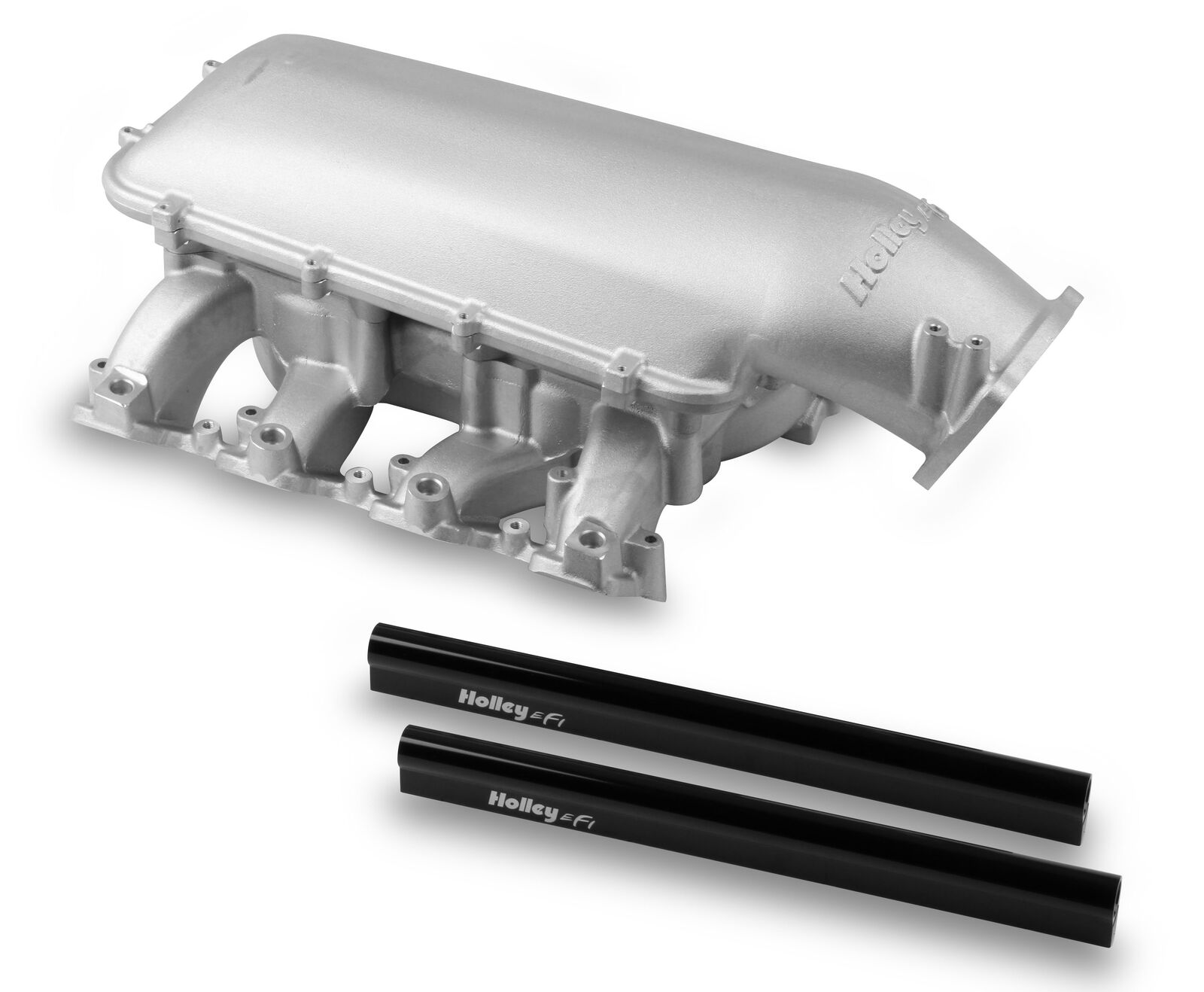

Holley EFI Mid-Rise Intake - GM LS3/L92 w/ 95mm Top
SKU code: 300-135
The Modular Mid-Rise intake utilizes the popular Holley LS3/L92 rectangle port Mid-Rise intake manifold along with a purpose built plenum base adapter and a Holley 95MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44", the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500-6,500 RPM and limited hood clearance. It's perfect for turbocharged, or naturally aspirated applications. This manifold is modular, and the plenum adapter (PN 300-231) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems. *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Features:
- 1500-6500RPM Power Band
- 92MM EFI Plenum
- Overall Height of 10.44 inches
- Mid-Rise manifold for excellent street/strip performance
- Fits GM LS3/L92 engines
Specs
| Basic Operating RPM Range | 2500-7000 RPM |
|---|---|
| Brand | Holley EFI |
| Category | Engine |
| Color | Silver |
| Construction | Cast |
| EGR Port | No |
| Emission Code | 3 |
| Engine | GM LS3/L92 |
| Finish | Silver |
| Flange Style | EFI |
| Front Height | 10.44 inch |
| Front Maximum Height | 10.44 IN |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | Yes |
| Fuel System Type | EFI |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | Yes |
| Manifold Type | Mid Rise |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Part Type | Engine Intake Manifold |
| Plenum Finish | Natural |
| Product Type | Intake Manifold |
| Rear Height | 9.99 inch |
| Rear Maximum Height | 9.99 IN |
| Recommended Use | Forced Induction |
| Removable Runners | No |
| RPM Power Band | 2500-7000 RPM |
| Single Or Dual Plane Type | Single Plane |
| Sub Category | Cylinder Block Components |
| Throttle Body Bore Diameter | 95 MM |
| Throttle Body Included | No |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| UPC | 090127688687 |
| Part Number | 300-135 |
| SKU | 300-135 |
| Barcode # | 90127688687 |
| Brand | Holley EFI |
| Shipping Weight | 16.1900kg |
| Shipping Width | 0.360m |
| Shipping Height | 0.400m |
| Shipping Length | 0.670m |
