Our 3 port boost control solenoid is designed for optimal performance when using the boost control function of Holley EFI. Some setups require two solenoids and some require one. The solenoid is driven by a Pulse Width Modulated (PWM) output of the ECU. It is advised not to use the PWM+ outputs on an HP ECU, but rather use the PWM- Outputs. If you have a Dominator ECU, either use the PWM- outputs, or use a PWM+ output on the J2B connector.

Features:

  • 3 port
  • For boost control
  • Used with Dominator and HP

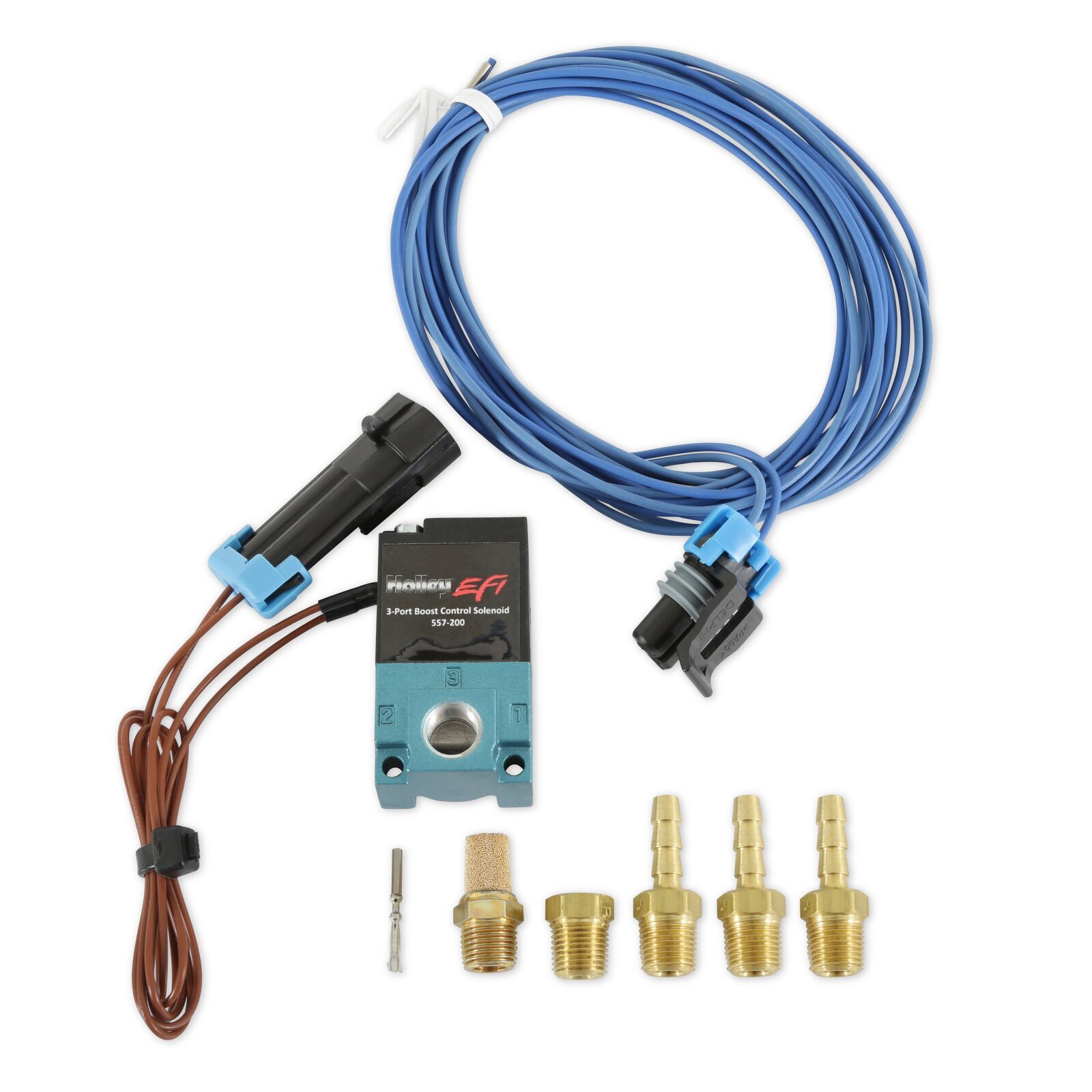

  • Includes (1) solenoid, (1) ECU pigtail harness with factory crimped ECU pin, (3) 3/16" barb fittings, (1) 1/8" NPT plug, (1) sintered brass muffler. and (1) spare ECU pin for modified harness lengths

Specs

Brand Holley EFI
Category Air and Fuel Delivery
Connector Type 2 pin Metri-Pack 150
Depth .94"
Emission Code 5
Grade Type Performance
Height 1.97"
Pig Tail Length 18"
Port Size 1/8" NPT
Product Type Boost Control Part
Width 1.10"
UPC 090127683446
Part Number 557-200
SKU 557-200
Barcode # 90127683446
Brand Holley EFI
Shipping Weight 0.2000kg
Shipping Width 0.080m
Shipping Height 0.090m
Shipping Length 0.100m
