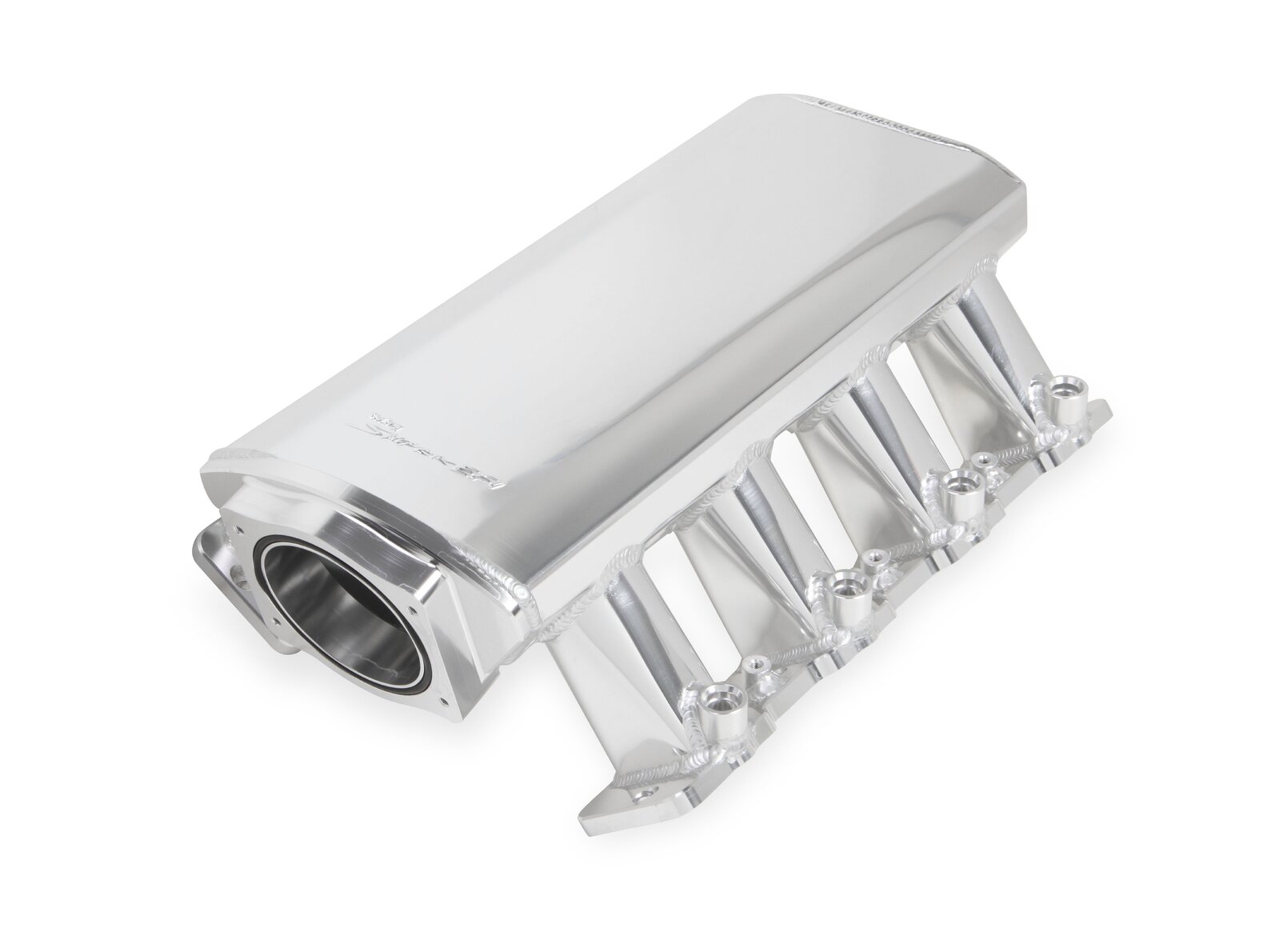

Holley Sniper EFI Sheet Metal Fabricated Intake Manifold GM LS7
SKU code: 830041-1
$1,419.17
Sheet Metal Fabricated Intake Manifold LS7 102mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo- Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent.
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!
Features:
- Silver finish creates high impact under-hood styling
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
- 102mm throttle bore opening for increased air flow
- 100% TIG welded for strength and durability
- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Provision for MAP sensor located on rear of plenum
- Product includes all gaskets and hardware for a hassle-free installation
- The Sniper intake will only accept EV1 style injectors.
Specs:
| Basic Operating RPM Range | 2500-7000 RPM |
|---|---|
| Brand | Holley Sniper EFI |
| Category Filter | Intake Manifolds |
| Clearance Category | Intake Manifolds |
| Color | Silver |
| Construction | Fabricated |
| EGR Port | No |
| Emission Code | 4 |
| Engine | GM LS7 |
| Finish | Silver |
| Front Height | 7.362 inch |
| Front Maximum Height | 7.362 IN |
| Fuel Injectors Included | No |
| Fuel System Type | EFI |
| Injector Style Provision | EV1 |
| Manifold Type | Fabricated |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Polished |
| Product Type | Intake Manifold |
| Rear Height | 6.850 inch |
| Rear Maximum Height | 6.85 IN |
| Recommended Use | Forced Induction |
| Removable Runners | No |
| Removable Top/Lid | No |
| RPM Power Band | 2500-7000 RPM |
| Runner Length | 4.921" (125mm) |
| Single Or Dual Plane Type | Single Plane |
| Style | EFI |
| Throttle Body Bore Diameter | 102 MM |
| Throttle Body Included | No |
| Throttle Bore | 102mm |
| Vacuum Ports | (3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
| Warranty | Limited 90 Day |
| UPC | 090127045336 |
| Part Number | 830041-1 |
| SKU | 830041-1 |
| Barcode # | 90127045336 |
| Brand | Holley Sniper |
| Shipping Weight | 6.8700kg |
| Shipping Width | 0.280m |
| Shipping Height | 0.380m |
| Shipping Length | 0.530m |
