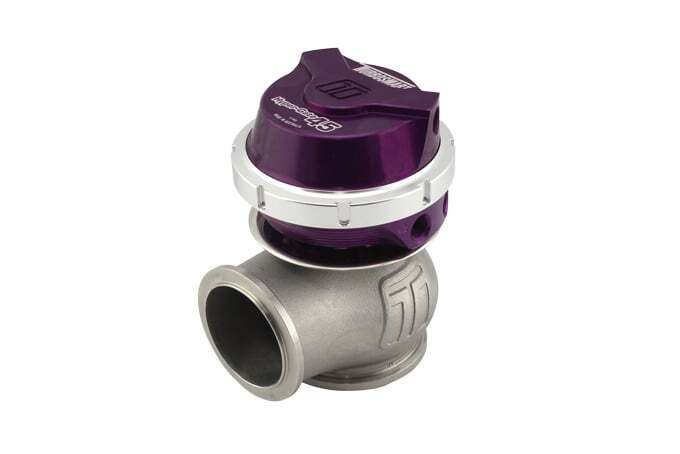

The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8? NPT reference ports and are provided with the full range of available springs.

Available In
Black, Blue, Red, Purple, Sleeper & Limited Edition Platinum colours
Wastegate Position Sensor Version & Upgrade
Compressed Gas (ex: Co2) Version
Motorsport Version (CFD-driven Heatsink design)
eWG (Electronically Actuated) Version
HP (High-Pressure Version) Up to 50psi

Features
Class Leading, Thermal Performance
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps

SKU TS-0553-1013
Barcode # 9329677020908
Brand TURBOSMART
Shipping Weight 1.9000kg
Shipping Width 0.190m
Shipping Height 0.140m
Shipping Length 0.220m
Shipping Cubic 0.005852000m3
