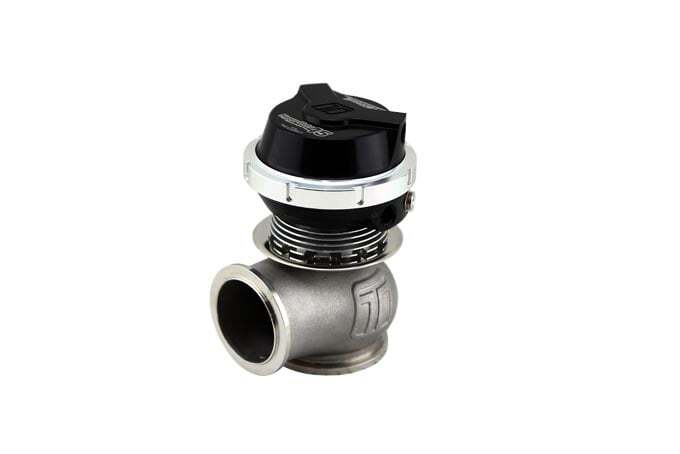

The GenV WG45 HyperGate45 Motorsport External Wastegate is a cost-effective external wastegate designed with huge thermal demands in mind. Based on the modular architecture of the GenV range, the Motorsport version has an extra CFD-driven heatsink built-in proven to dissipate more heat and further isolate the actuator housing from thermal stress. The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8? NPT reference ports and are provided with the full range of available springs.

Available In
Black, Blue, Red and Purple
Wastegate Position Sensor Version & Upgrade
Compressed Gas (ex: Co2) Version
Motorsport Version (CFD-driven Heatsink design)
eWG (Electronically Actuated) Version
HP (High-Pressure Version) Up to 50psi

Features
CFD Driven heatsink design
Class Leading, Thermal Performance
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps

SKU TS-0553-1102
Barcode # 9329677018806
Brand TURBOSMART
Shipping Weight 1.8920kg
Shipping Width 0.170m
Shipping Height 0.140m
Shipping Length 0.220m
Shipping Cubic 0.005236000m3
