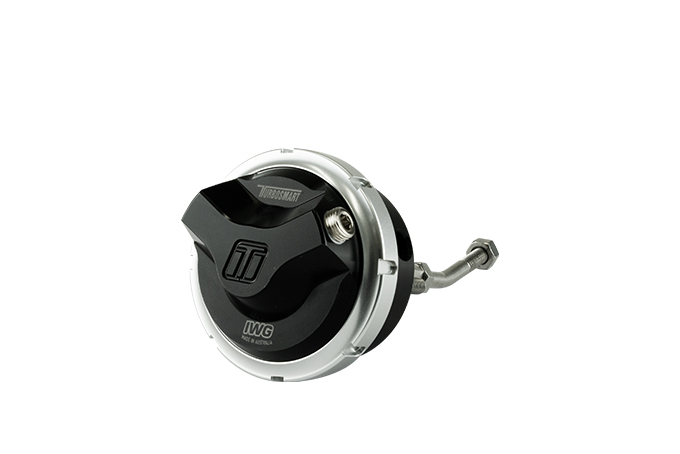

Turbosmart GenV Twin Port Internal Wastegate Actuator to suit Garrett G25 Series Turbochargers. This IWG actuator has it all, taking technology from the Award winning GenV range of External Wastegates providing unparalleled actuator performance.

Turbosmart GenV IWG (Internal Wastegate Actuator) Range provides improvements in boost control over your factory actuator. The large working surface area of our unique diaphragm system ensures increased boost response and control, at any performance or boost level.

Using Turbosmart’s locking collar system, you can also quickly change your base spring selection from 5, all the way up to 26psi. The Nitronic guide & Hard Chromed Intermediate Rod, mated with the swivel joint system ensure the best possible lower chamber seal for true twin port control strategies, unequalled actuation range and control.

Available in
GenV Twin Port (Standard Cap): TS-0620-4012
GenV Twin Port (Position Sensor Cap): TS-0620-4014

Features
GenV cap including 1/8NPT reference ports
True Twin Port Control for a wide boost control window
Hard chromed Intermediate rod & nitride guide for cycle tested & proven reliability
Proprietary Swivel Joint for complete linear actuation
Turbo specific rod to ensure perfect fitment on all G25 series turbos.

This is a bolt-on fitment for the Garrett G25 Series turbochargers. Accessories are supplied to adapt to all internally actuated variants, including all spring options.

Suitable

  • Garrett G25 Series Internally Actuated Turbos
SKU TS-0625-3143
Barcode # 9329677023237
Brand TURBOSMART
Shipping Weight 0.5500kg
Shipping Width 0.090m
Shipping Height 0.100m
Shipping Length 0.290m
Shipping Cubic 0.002610000m3
