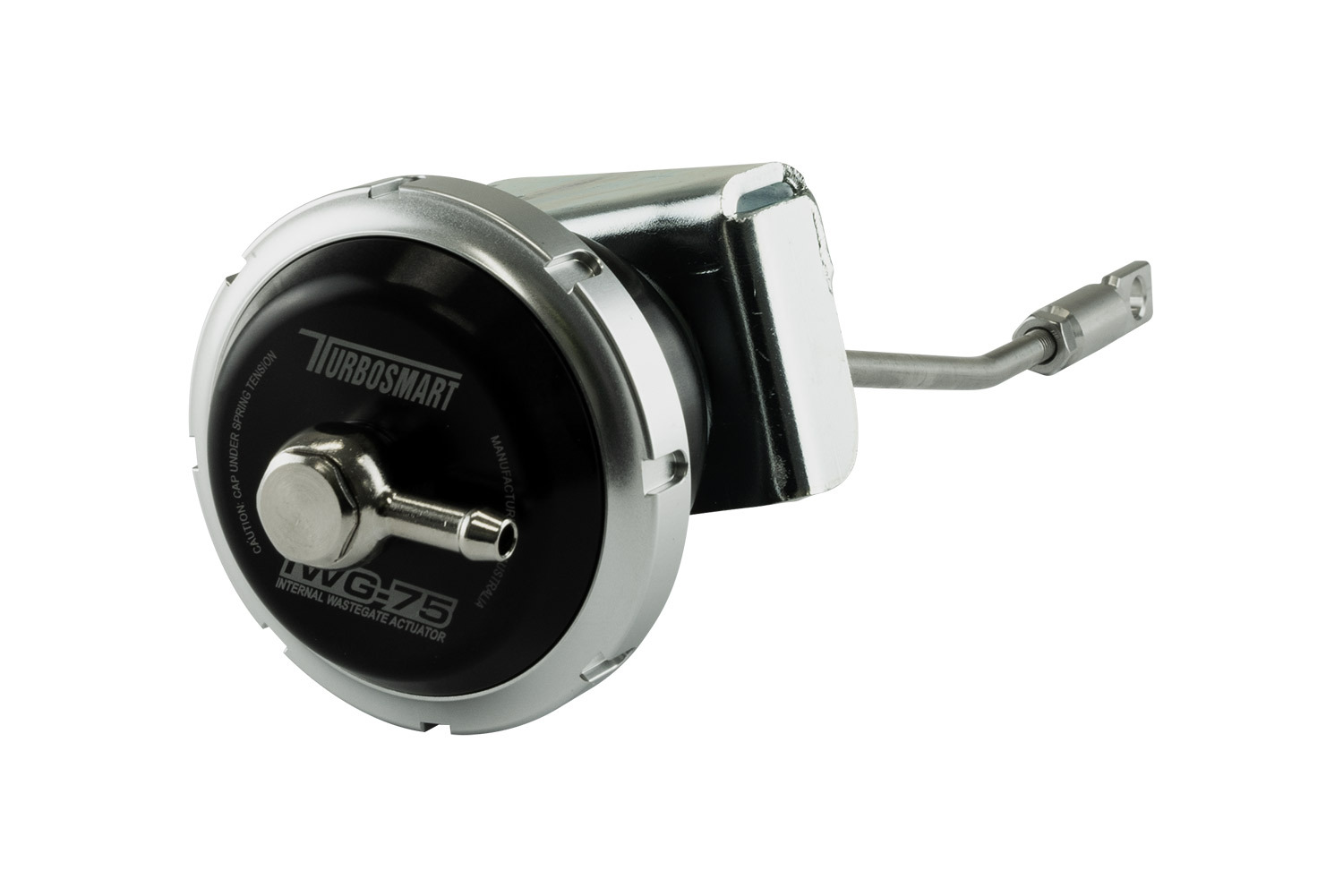

Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response throughout the RPM range.

This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as the factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer into higher RPM. These improvements can be amplified with higher base pressures. However, tuning & recalibration is likely required.

Available In
10 PSI / 0.68 BAR: TS-0601-2102
14 PSI / 1.00 BAR: TS-0601-2142
18 PSI / 1.24 BAR: TS-0601-2182
22 PSI / 1.51 BAR: TS-0601-2222
24 PSI / 1.65 BAR: TS-0601-2242
26 PSI / 1.79 BAR: TS-0601-2262

Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High-Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System

Notes
14 psi Version is a direct replacement for the factory item. All other versions will require tuning/calibration of your engine's ECU.

SUITABLE FOR
This is a bolt-on fitment for the TD05H turbocharger as a fitted factory to the 46G3 Powered Mitsubishi Evolution 9.

SKU TS-0601-2222
Barcode # 9329677012897
Brand TURBOSMART
Shipping Weight 0.7500kg
Shipping Width 0.090m
Shipping Height 0.100m
Shipping Length 0.290m
Shipping Cubic 0.002610000m3
