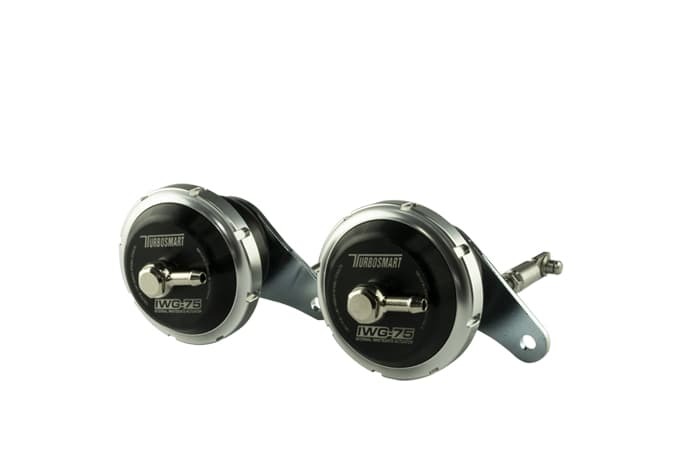

Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response throughout the RPM range.

This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as the factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer into higher RPM. These improvements can be amplified with higher base pressures, however, tuning & recalibration are likely required.

Available In
7 psi / 0.50 BAR: TS-0615-2072
19 psi / 1.31 BAR: TS-0615-2192
24 psi / 1.65 BAR: TS-0615-2242

GenV Twin Port - 14psi / 1.0 BAR: TS-0615-7143
GenV Twin Port (Inc Position Sensor Caps) -
14 psi / 1.0 BAR: TS-0615-7144

Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High-Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System

Notes
The 7 psi version is a direct replacement for the factory item. All other versions will require tuning/calibration of your engine's ECU.

SUITABLE FOR

This is a bolt-on fitment for the turbochargers as a fitted factory to the VR38 3.8 Liter Twin Turbo Powered Nissan GT-R R35 from 2007 – 2021
