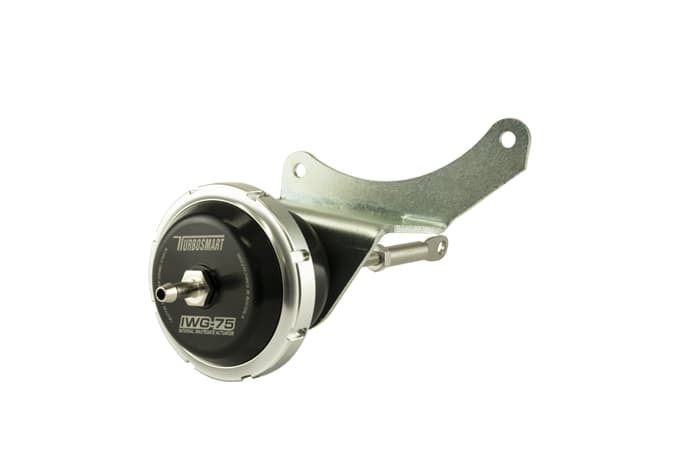

Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response, throughout the RPM range.

This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.

Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System

The Polaris RZR is a UTV (Utility-Terrain Vehicle), and sometimes referred to as ATV (All-Terrain Vehicle) in some markets and also commonly known as a ‘Side-by’Sides’ produced by American manufacturer Polaris, who are also well known for their motorcycles, snowmobiles and ATV’s. The RZR Turbo was introduced in 2016 with a 168HP 4 Stroke DOHC engine of just 925cc & mated to a switchable 2WD / AWD driveline for maximum recreational fun!

This product can be used in conjunction with TS-0203-1069 - Kompact Dual Port RZR Turbo Blow Off Valve.

Suitable for Polaris RZR Turbo and Turbo S vehicles from 2016-2021. Please look up the vehicle application guide for more detail.
