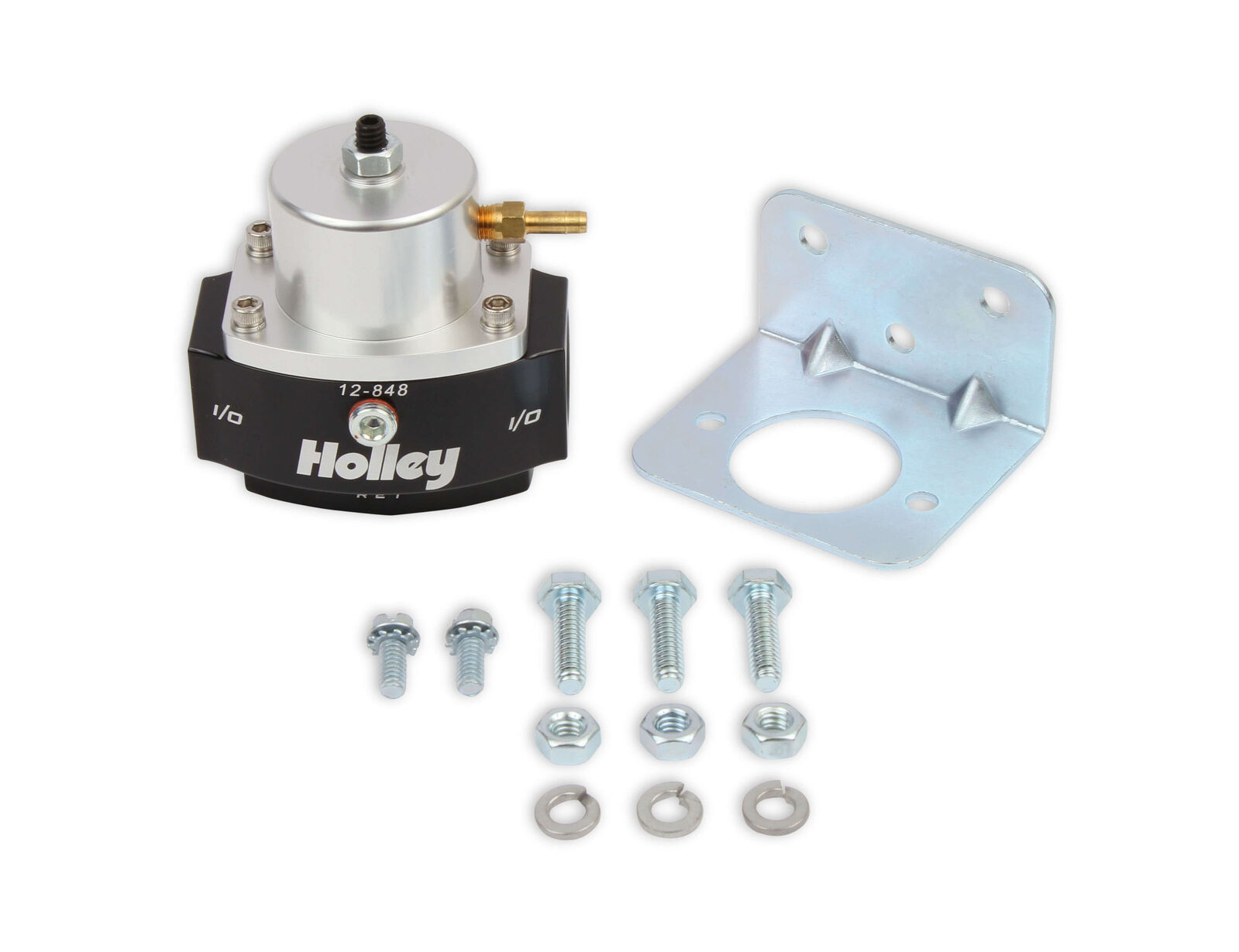

Holley EFI billet bypass fuel pressure regulator kit is part of a complete line of fuel system products from Holley. The included 12-848 regulator features a billet aluminum body and a black finish for corrosion resistance. The regulator contains 10 AN in/out ports, a 8 AN return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for boost reference (1:1). In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included for an easy installation.

Features:

  • Die Cast Aluminum Construction
  • Adjustable from 15-60 psi for precise fuel pressure adjustments
  • Used in return style systems with a line back to the fuel tank
  • 10 AN O-ring Inlet, Outlet, and 8 AN O-ring Return Port
  • 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)
  • 1/8" NPT Boost Reference (1:1) and Barbed Fitting
  • Included mounting bracket

Specs

Adjustable Yes
Brand Holley EFI
Category Air and Fuel Delivery
Color Black
Emission Code 5
Fuel Pressure Range 15-60
Fuel System EFI
Fuel Type Gasoline
Gauge Port Yes
Grade Type Performance
Inlet Port Diameter -10AN
Inlet Quantity One
Inlet Size 10 AN O-ring
Inlet Type ORB
Material Aluminium
Maximum Pressure Reading 60 PS
Mounting Hardware Included Yes
Mounting Type Bolt On
Outlet Port Diameter -10AN
Outlet Quantity Two
Outlet Size 10 AN O-ring
Outlet Type ORB
Part Type Fuel Injection Pressure Regulator
Port Quantity 5
Pressure Range 15-60 PSI
Product Type Fuel Pressure Regulator
Return Size 8 AN O-Ring
Style Bypass
Sub Category Fuel Injection System and Related Components
Warranty Manufacturer's Limited 90 Day Warranty
UPC 090127122914
Part Number 12-848KIT
SKU 12-848KIT
Barcode # 90127122914
Brand Holley EFI
Shipping Weight 1.0800kg
Shipping Width 0.140m
Shipping Height 0.170m
Shipping Length 0.180m
