Holley EFI 12-882 Bypass Fuel Pressure Regulator Kit
SKU code: 12-882KIT
$286.42

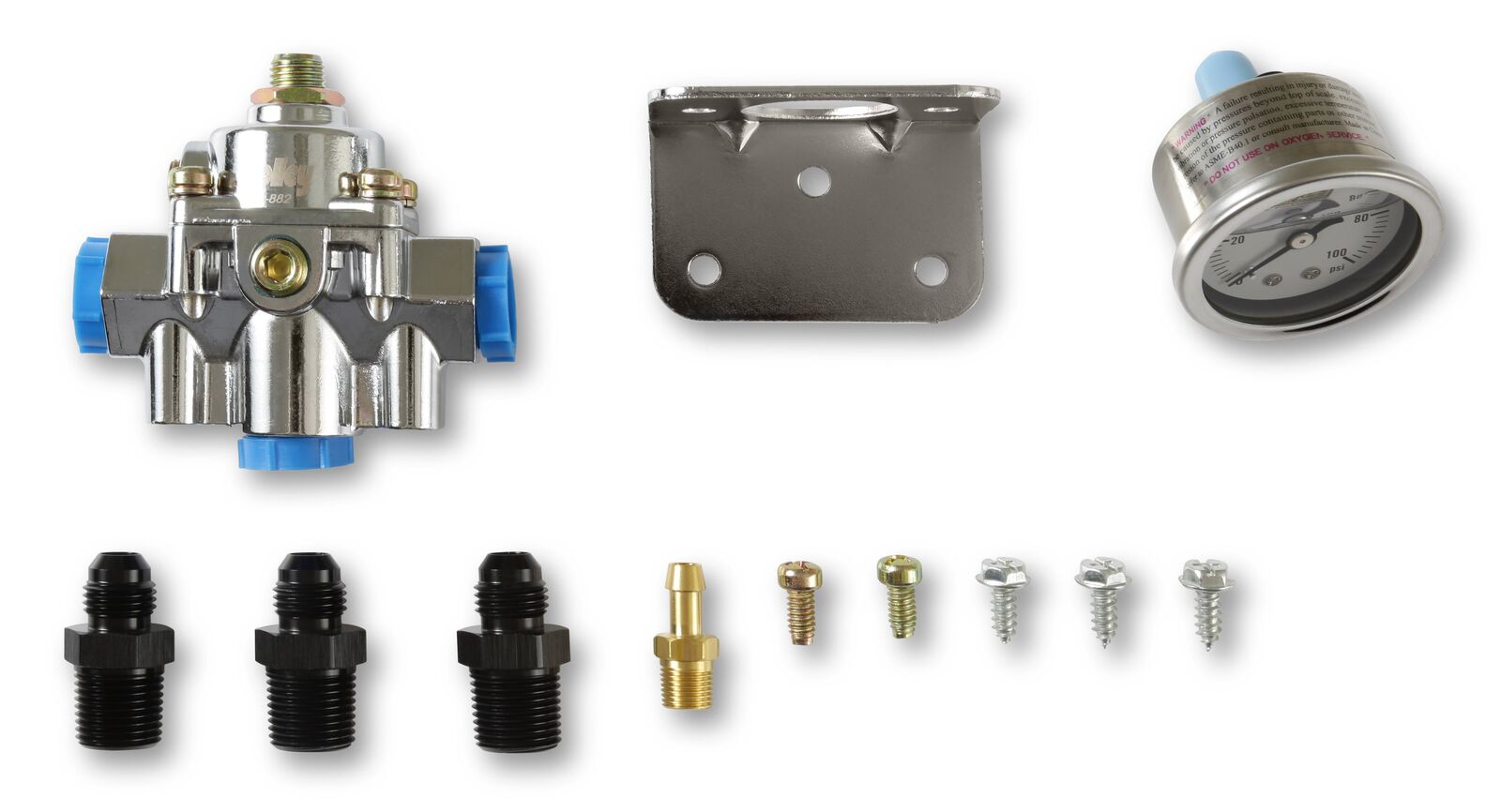

Included gauge and fittings
Overview
Holley EFI bypass fuel pressure regulator kits are part of a complete line of fuel system products from Holley. The included 12-882 EFI Fuel Regulator features a die cast aluminum body and a chrome finish for corrosion resistance and clean appearance. The regulator contains 3/8" NPT inlet/outlet ports, 3/8" NPT return port, 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, (3) Mr. Gasket 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included in the kit.
Features:
- Die cast aluminum construction with chrome finish
- Adjustable from 15-60 psi for precise fuel pressure adjustments
- 60 PSI preset pressure
- Used in return style systems with a line back to the fuel tank
- 3/8” NPT Inlet, Outlet, and Return Ports
- 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)
- 1/8" NPT Boost Reference (1:1) and Barbed Fitting
- Mr. Gasket 3/8” NPT to -6 AN fittings (481666-BL x3)
- Included mounting bracket
Specs:
| Adjustable | Yes |
|---|---|
| Brand | Holley EFI |
| Category | Air and Fuel Delivery |
| Color | Chrome |
| Emission Code | 5 |
| Fuel System | EFI |
| Fuel Type | Gasoline |
| Gauge Included | Yes |
| Gauge Port Included | Yes |
| Grade Type | Performance |
| Inlet Gender | Female |
| Inlet Port Diameter | 3/8 NPT IN |
| Inlet Size | 3/8 inch NPT |
| Inlet Type | NPT |
| Material | Aluminium |
| Maximum Pressure | 60 PS |
| Minimum Pressure | 15 PS |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Type | Bolt On |
| Outlet Gender | Female |
| Outlet Port Diameter | 3/8 NPT IN |
| Outlet Size | 3/8 inch NPT |
| Outlet Type | NPT |
| Part Type | Fuel Pressure Regulator |
| Port Quantity | 5 |
| Pressure Range | 15-60 PSI |
| Pressure Rating | 15-60 PS |
| Product Type | Fuel Pressure Regulator |
| Rebuildable | Yes |
| Return Size | 3/8 inch NPT |
| Style | Bypass |
| Sub Category | Carburetion |
| Vacuum Port Quantity | 1 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| UPC | 090127122976 |
| Part Number | 12-882KIT |
| SKU | 12-882KIT |
| Barcode # | 90127122976 |
| Brand | Holley EFI |
| Shipping Weight | 0.7700kg |
| Shipping Width | 0.140m |
| Shipping Height | 0.170m |
| Shipping Length | 0.180m |
