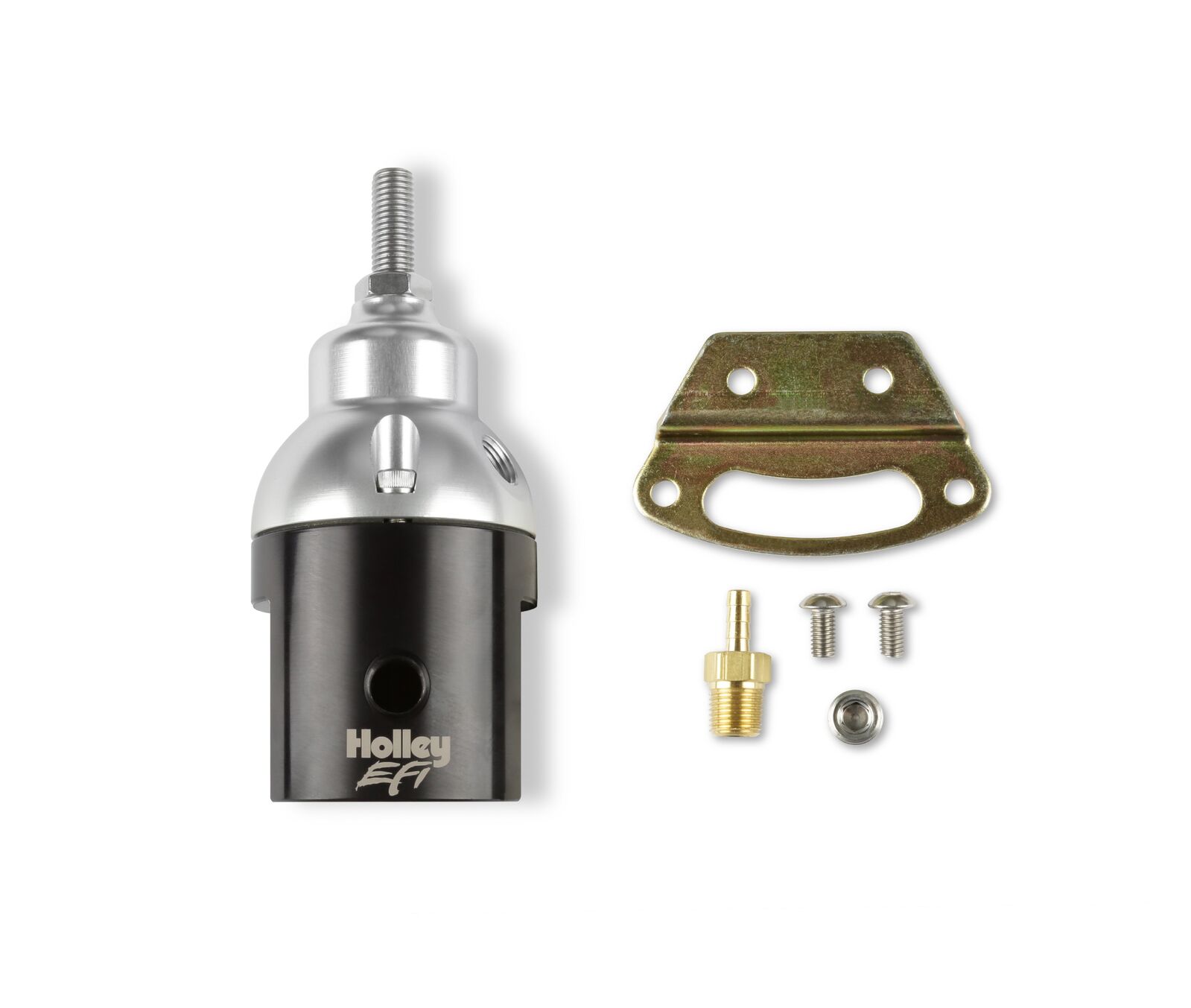

Holley EFI 15-90 PSI Fuel Regulator 8AN Boost Reference 1:1

Overview
Holley EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 15-90 psi, a gauge port, and a boost reference port as well. The regulators are ideal for vehicles/systems where superior flow and pressure control are desired. The regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-894 has -6AN port sizes and the 12-895 has -8AN port sizes.
Features:

  • Adjustable from 15-90 psi for precise fuel pressure adjustments
  • Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
  • Used in systems with a return line back to tank
  • Includes fitting for manifold reference
  • Use with electric pumps only
  • Available in -6AN and -8AN Port sizes
  • 1/8-inch NPT Boost Reference Port (Ratio 1:1)
  • 1/8-inch NPT Fuel Gauge Port
  • Mounting bracket included

Specs:

Adjustable Yes
Brand Holley EFI
Category Air and Fuel Delivery
Emission Code 3
Fuel System EFI
Fuel Type Gasoline
Gauge Included No
Gauge Port Included Yes
Grade Type Performance
Inlet Gender Female
Inlet Port Diameter -8AN
Inlet Type ORB
Material Aluminium
Maximum Pressure 90 PS
Minimum Pressure 15 PS
Mounting Bracket Included Yes
Mounting Type Bolt On
Outlet Gender Female
Outlet Port Diameter -8AN
Outlet Type ORB
Part Type Fuel Pressure Regulator
Port Quantity 5
Pressure Range 15-90 PS
Pressure Rating 15-90 PS
Product Type Fuel Pressure Regulator
Rebuildable Yes
Style Bypass
Sub Category Carburetion
Vacuum Port Quantity 1
Warranty Manufacturer's Limited 1 Year Warranty
UPC 090127130629
Part Number 12-895
SKU 12-895
Barcode # 90127130629
Brand Holley EFI
Shipping Weight 0.4100kg
Shipping Width 0.090m
Shipping Height 0.110m
Shipping Length 0.130m
