Typically used in TBI systems

Overview

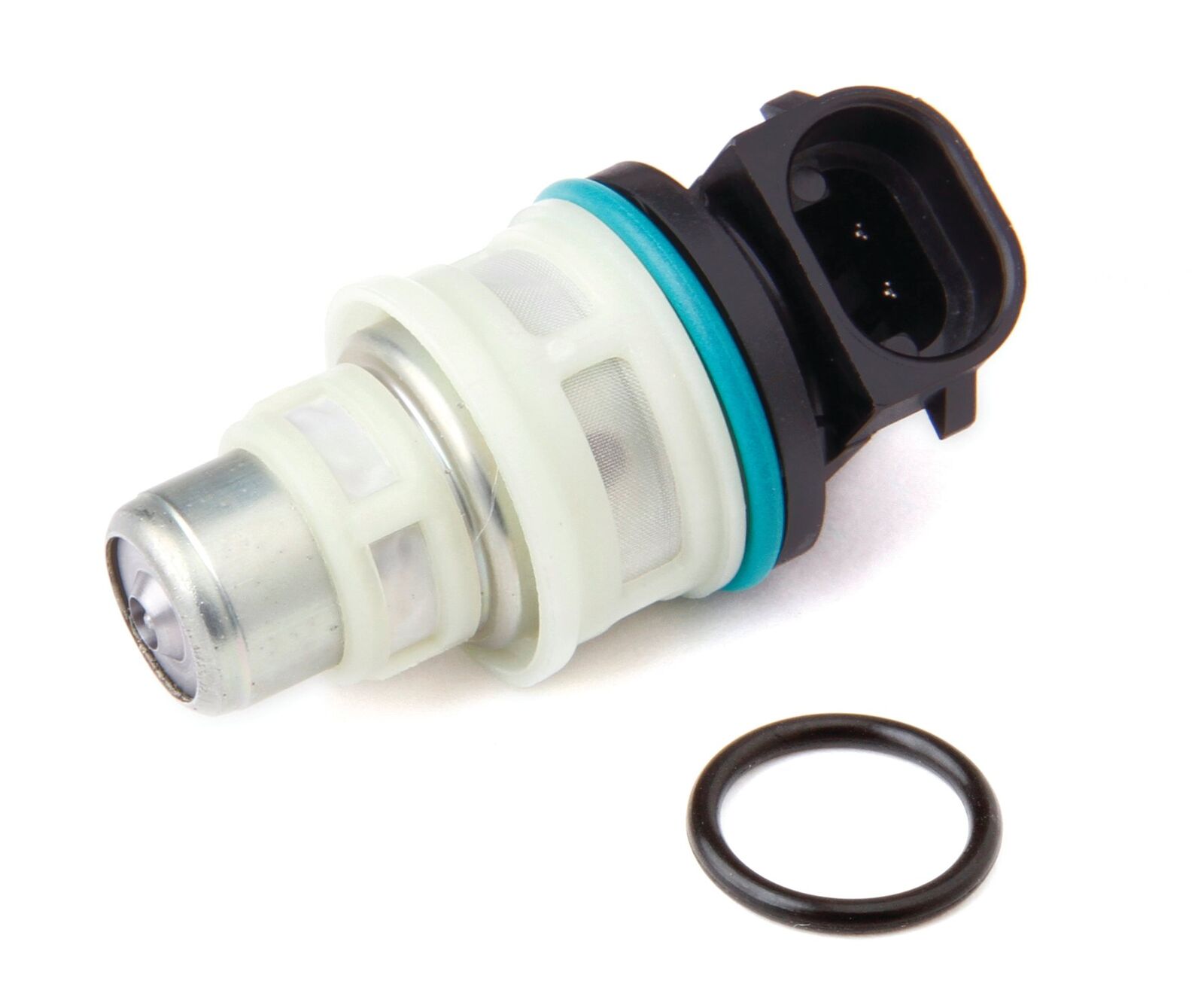

This electromagnetic valve meters fuel into the intake manifold proportional to the air being induced into the engine. When the valve is energized, the electromagnetic force generated by the solenoid lifts the pintle/ball from the seat. Fuel under pressure is then injected into the throttle body bore. For throttle body injection, a hollow conical spray is required to aim the metered flow around the throttle valve.
Features:

  • Fits 502-4, 502-7, 502-8, and 950-24S throttle body injectors and systems
  • TBI Flow @70kPa 6.35g/s
  • Commander 950 Systems 50 PPH@12 PSI 72 PPH@21 PSI
  • Silver color
  • Sold individually

Specs:

Body Diameter 0.97
Body Length N/A
Body Style N/A
Brand Holley EFI
Category Air and Fuel Delivery
Color Black
Connector Series Early TBI
Connector Shape Early TBI
Emission Code 4
Flow Rate 72 4U
Fuel Injection Type Port
Fuel Type E-85, Gasoline
Gasket Or Seal Included Yes
Grade Type Performance
Impedance Low (2.0 Ohm)
Mounting Hardware Included No
O-Ring Quantity 2 per injector
O-Ring to O-Ring N/A
Part Type Fuel Injector
Product Type Fuel Injector
Rated Injector Flow 72 lb/hr
Retainer Clips Included No
Sub Category Fuel Injection System and Related Components
Terminal Gender Female
UPC 090127538296
Part Number 522-80
SKU 522-80
Barcode # 90127538296
Brand Holley EFI
Shipping Weight 0.0700kg
Shipping Width 0.060m
Shipping Height 0.100m
Shipping Length 0.100m
